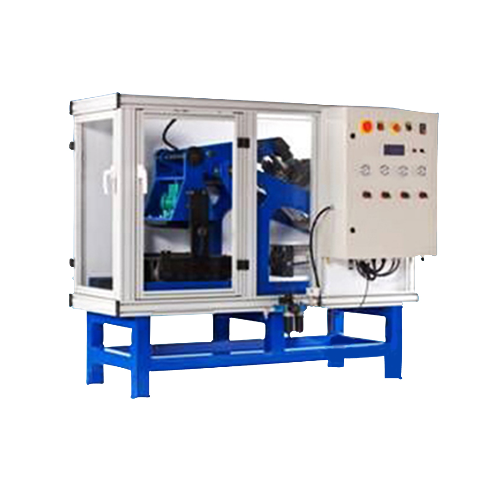

I. Main technical features
1. Using MITSUBISHI PLC as the core of the control system, safe, reliable and stable. The system has perfect self-protection, have the ability to do long-term work under the complex condition of environment.
2. Use Japanese Mitsubishi touch screen as the man-machine dialogue window, the operation interface is clear and good, in Chinese and English dual interface. Setting operational parameters is simple, real-time display work process-related data.
3. Rolling vibration mode, using Panasonic inverter, in the (0 ~ 50) Hz, the vibration frequency can be changed arbitrarily, vibration compaction simulation scene.
4. Sector steel wheel rolling, rolling speed can be regulated, the operator can select and set rolling beats per minute.
5. Wheel crushed type machine mold dimensions: 300mm × 300mm, 300mm × 400mm, 305mm × 300mm, 305mm × 400mm mold thickness dimension: (50 ~ 120) mm, according to the user's request, suitable for use ruts instrument.
6. The maximum compaction load 55KN, equivalent to the maximum static scene rolling wheel.
7. Through four regulator knob, the operator can adjust and set the compaction load levels.
8. Safety protection door. Three protective doors open any one of the protective doors, the equipment expire, power outages, protect the safety of the operator.
9. The test sample can be used as the wheel test, cut as the column or the core can be used as the indirect tensile test and residual strain test.
10. User-friendly design, easy to insert and remove the mold.
II. Main technical specifications
1. Total power: 300W
2. Power supply: AC220V, 50 / 60Hz
3. The maximum wheel grinding load: 55kN
4. Rolling schedule: ± 150mm
5. Rolling speed: adjustable, up to 10 times per minute
6. The specimen plate thickness: 50mm ~ 120mm, adjustable
7. Vibration frequency: 0Hz ~ 50Hz, adjustable
8. Compressed air: 0.6MPa ~ 0.8MPa, 700 L/ min
9. Overall dimensions: 1780mm × 950mm × 1550mm
10. The machine Weight: about 750kg
