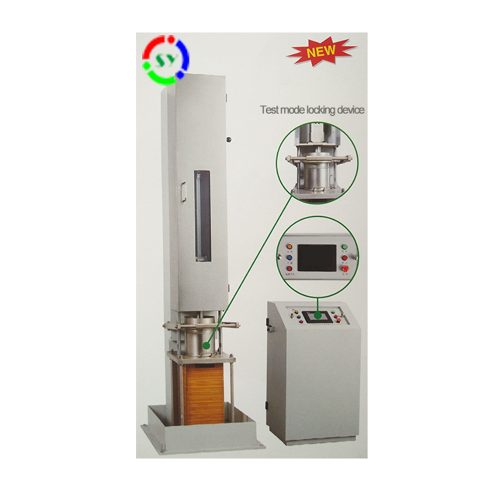

Samyon 0702A-1 Marshall Electric Compactor (457mm)

II. Main technical specifications

1. Hammer 1：  4536g±9g(Φ101.6mm×63.5mm mold)

2. Hammer 2：  10210g±10g(Φ152.4mm×95.3mm mold)

3. Fall of Hammer：  457mm±1.5mm；

4. Compaction speed：  (60±5)times/min

5. Compaction times：  (0～999)times

6. Wooden compaction pedestal：  457mm×200mm×200mm

7. Concrete compaction pedestal：  120mm×460mm×480mm

8.Lifting motor power: 0.01KW

9.Color touch screen: 480x270 mm

10.Power supply：  AC（220±10%）V,50Hz

11.Motor power：  370W

12.Work environment:temperature -10℃～35℃,relative humidity ≤85%

13.Outline dimension：  1950mm×540mm×540mm

13.Net weight：  About 180kg

III. Optional accessorry

1. Mold professional ejector

2. Asphalt mixture blender: F02-20 automatic asphalt mixture blender(recommended)
