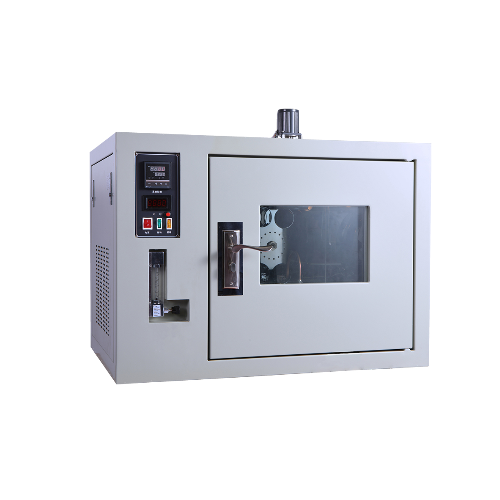

Samyon 0610 ເຕົາອົບຟິມປູຢາງບາງ (2.4kW)

I. Main technical features

1. This Oven is composed of electric control component, working oven and mechanical drive. An illuminating light is equipped in the oven for convenient observation.

2. There is an air compressor in the oven to supply the air needed for the test. The air can be controlled by a flowmeter on the panel.

3. It adopts high precise temperature controller which can meet test requirements.

II. Main technical specifications

Power supply: AC（220±10%）V, 50Hz

Heating power: 2.4kW

Working temperature: 163℃

Temperature control precision: ±0.5℃

Rotating speed of turn plate: (15±0.2) r /min

Air flow rate: (4000±200)mL /min

Timing unit: Alert at 85 min

Ambient temperature: (5~50)℃

Relative humidity: ≤85%

Maximum power consumption: 2.6kW
