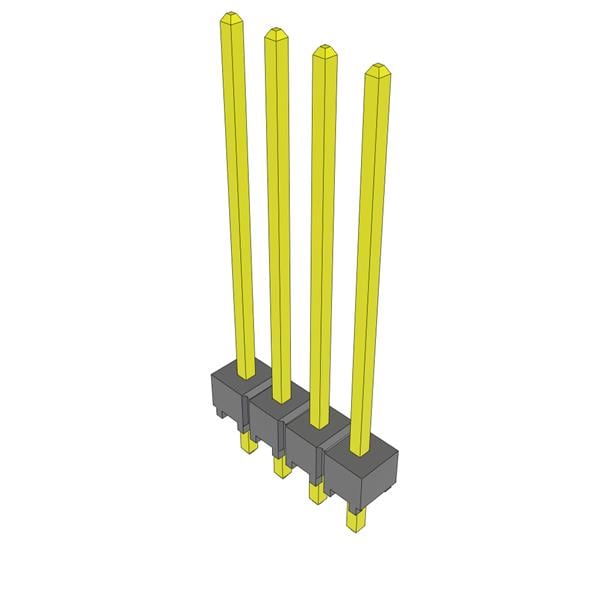

Pitch: 2.54 mm (0.1 in)
Application: Board-to-Board, Cable
Unit Weight: 70.240 mg
Housing Color: Natural
Contact Gender: Pin (Male)
Current Rating: 4.3 A, 4.6 A, 5.2 A, 5.7 A, 6.3 A
Mounting Angle: Straight
Mounting Style: Through Hole
Number of Rows: 1 Row
Voltage Rating: 400 VAC, 450 VAC, 500 VAC, 515 VAC, 550 VAC
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder Pin
Mating Post Length: 18.29 mm (0.72 in)
Flammability Rating: UL 94 V-0
Number of Positions: 4 Position
Termination Post Length: 2.79 mm (0.11 in)
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
