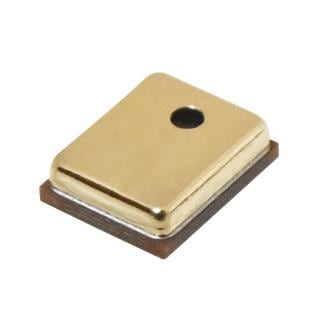

Same Sky (formerly CUI Devices) CMM-4737DT-26186-TR ໄມຄໂຣໂຟນ MEMS MEMs Microphone 4.72x3.76mm 2Vdc SMT

Depth: 1.25 mm

Shape: Rectangular

Width: 3.76 mm

Length: 4.72 mm

Impedance: 300 Ohms

Port Type: Top

Tolerance: 1 dB

Dimensions: 4.72 mm x 3.76 mm x 1.25 mm

Output Type: Digital

Sensitivity: - 26 dB

Unit Weight: 25 mg

Mounting Style: SMD/SMT

Frequency Range: 100 Hz to 10 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 120 dB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Directional Properties: Omnidirectional

Operating Supply Current: 860 uA

Operating Supply Voltage: 2 V

SNR - Signal to Noise Ratio: 58 dBA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
