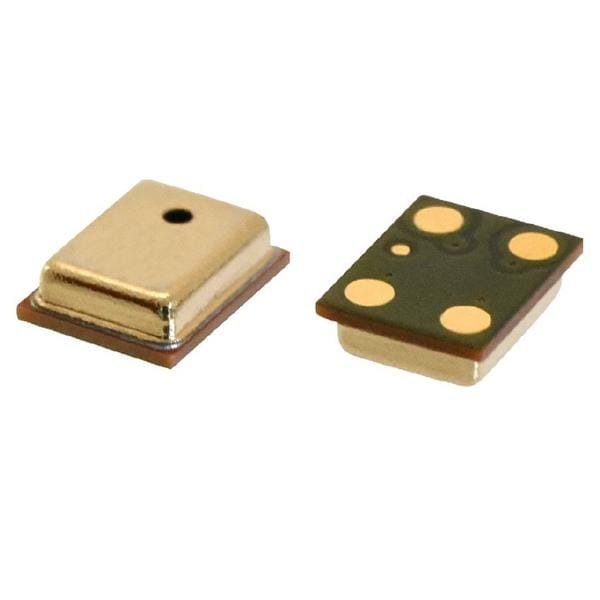

Same Sky (formerly CUI Devices) CMM-3729AT-42108-TR ໄມໂຄໂຟນ MEMS MEMs Microphone 3.76x2.24mm 2Vdc SMT

Depth: 1.1 mm

Shape: Rectangular

Width: 2.95 mm

Length: 3.76 mm

Impedance: 300 Ohms

Port Type: Top

Tolerance: 1 dB

Dimensions: 3.76 mm x 2.95 mm x 1.1 mm

Output Type: Analog

Sensitivity: - 42 dB

Unit Weight: 24 mg

Mounting Style: SMD/SMT

Frequency Range: 100 Hz to 10 kHz

Termination Style: SMD/SMT

Sound Pressure Level: 130 dB

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.6 V

Directional Properties: Omnidirectional

Operating Supply Current: 80 uA

Operating Supply Voltage: 2 V

SNR - Signal to Noise Ratio: 60 dBA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
