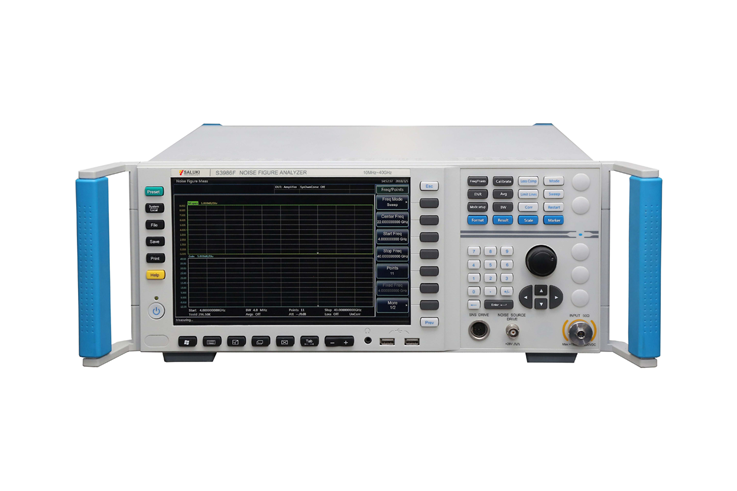

SALUKI S3986F Noise Figure Analyzer (10 MHz ~ 40 GHz)
Frequency Range: 10 MHz to 40 GHz
Frequency Reference Accuracy: <±0.2ppm (23°C±3°C)
Frequency Tuning Accuracy
10MHz – 4GHz: < ±(Reference frequency error +100kHz)
4GHz – 18/26.5/40/50GHz: < ±(Reference frequency error +400kHz)
Noise Figure Measurement Range: 0 – 30dB (ENR: 12dB – 17dB)
Gain Measurement Range: -20dB to +40dB
Input VSWR
10MHz ≤ f ≤ 4GHz: < 1.90:1
4GHz < f ≤ 18GHz: < 2.10:1
18GHz < f ≤ 50GHz: < 2.40:1
Main Unit’s Self Noise Figure
10MHz ≤ f ≤ 4GHz: < 8.0dB
4GHz < f ≤ 18GHz: < 7.5dB
18GHz < f ≤ 26.5GHz: < 8.0dB
26.5GHz < f ≤ 40GHz: < 10.0dB
40GHz < f ≤ 50GHz: < 12.0dB
Altitude Range: 4,600 meters
RF Input Connector: 2.4mm (male), 50Ω impedance
Noise Source Drive Output
Standard noise source: BNC (female)
Smart noise source: multi-core connector
Power Supply: AC 100V – 240V, 50/60Hz
Power Consumption:
Max. power consumption: 250W
Max. standby: 20W
Monitor: 10.1 inch 1280×800 HD screen, XGA
Data Storage: 160 G solid state disk, support USB 2.0 standard storage units
Dimension:
426(W) × 177(H) × 460(D)mm (excluding handle, bottom, pad and side strap)
510(W) × 190(H) × 534(D) mm (including handle, bottom, pad and side strap)
Weight: < 25kg
