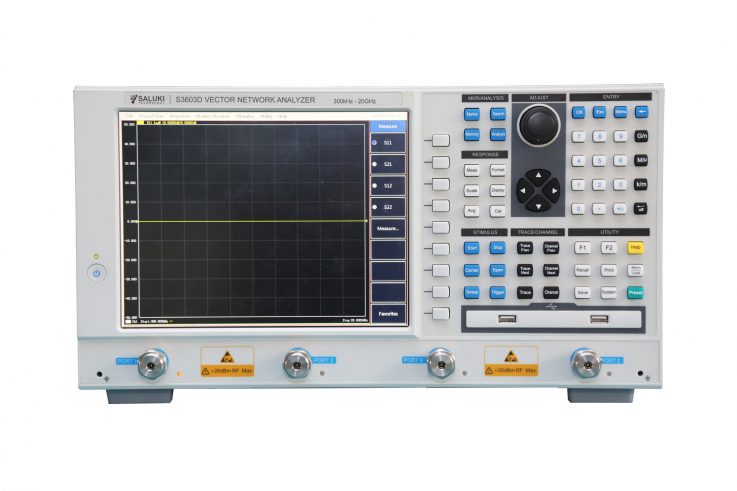

SALUKI S3603D Vector Network Analyzer (300 kHz ~ 20 GHz)
Frequency Range: 300 kHz to 20 GHz
Frequency Resolution: 1 Hz
Frquency Accuracy: ±1×10-6 , (23°C±3°C)
System Dynamic Range (2-port)
300kHz – 100MHz: 95dB
100MHz – 1GHz: 110dB
1GHz – 6GHz: 120dB
6GHz – 8GHz: 117dB
8GHz – 10GHz: 115dB
10GHz – 15GHz: 110dB
15GHz – 20GHz: 100dB
System Dynamic Range (4-port)
300kHz – 100MHz: 90dB
100MHz – 1GHz: 100dB
1GHz – 6GHz: 115dB
6GHz – 8GHz: 110dB
8GHz – 10GHz: 105dB
10GHz – 15GHz: 100dB
15GHz – 20GHz: 90dB
Transmission Track
300kHz – 10MHz: ±0.03dB
10MHz – 3GHz: ±0.04dB
3GHz – 6GHz: ±0.10dB
6GHz – 20GHz: ±0.15dB
Effective Directivity
300kHz – 10MHz: 46dB
10MHz – 3GHz: 42dB
3GHz – 6GHz: 38dB
6GHz – 20GHz: 36dB
Test Points: 1 to 16001
Average Factor: 1 to 1024
Channel: Max. 64 independent channels
IF Bandwidth: 1Hz – 5MHz (Stepping by 1,2,3,5,7)
Magnitude Display Resolution: 0.001dB/div
Reference Level Magnitude: -500dB to +500dB
Input Reference Phase Range: -500° to +500°
Port Connector Type: 3.5mm (male), 50 Ω impedance
Number of Test Ports: 2 / 4
Number of Test Receivers: 2 / 4
Peripheral Interface: USB, GPIB, VGA, LAN
Operating System: Windows 7
Dimension: 436 (W) × 236.5 (H) × 410 (D) mm
Weight: 18 kg
Display: 10.4-inch high brightness LCD
Power Consumption: Max. 150W
Power Supply: 50Hz single phase 220V or 50Hz/60Hz single phase 110V AC
