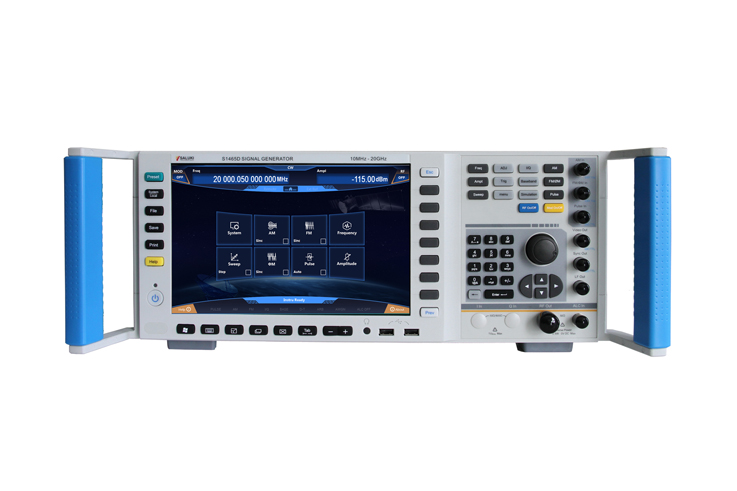

SALUKI S1465D-V ເຄື່ອງກໍາເນີດສັນຍານ vector (100 kHz ~ 20 GHz)
Frequency Range: 100kHz to 20 GHz
Frequency Resolution: 0.001 Hz
Frequency Switching Time: ≤ 20ms
Reference Output:
Frequency: 10MHz
Power: >+4dBm, to 50Ω
Reference Input:
Frequency: 1MHz – 50MHz, 1Hz step
Power: -5dBm to +10dBm, 50Ω impedance
Sweep Mode: Step sweep, list sweep, analog sweep
Minimum Output Power: -20dBm
Maximum Output Power (Standard): 100kHz ≤ f ≤ 20GHz: 15dBm
Power Resolution: 0.01 dB
Power Temperature Stability: 0.02 dB/ºC
VSWR:
100kHz ≤ f ≤ 2GHz: <1.4
2GHz < f ≤ 20GHz: <1.6
20GHz < f ≤ 40GHz: <1.8
40GHz < f ≤ 67GHz: <2.0
Haimonic Wave
100kHz ≤ f ≤ 10MHz: < -25dBc
10MHz < f ≤ 2GHz: < -30dBc
2GHz ＜ f ≤ 20GHz: < -55dBc
20GHz ＜ f ≤ 40GHz: < -45dBc
SSB Phase Noise (Carrier 1GHz, at +10dBm): Standard:
-101 dBc/Hz @ 100Hz
-121 dBc/Hz @ 1kHz
-130 dBc/Hz @ 10kHz
-130 dBc/Hz @ 100kHz
Vector Modulation Accuracy: 50MHz – 40GHz: EVM(RMS%)<1.4%
RF Output Port: 3.5mm (male), impedance 50Ω
Power Consumption: < 400W
Dimension (max.)
435 (W) × 178 (H) × 498 (D) mm (excluding the handle)
517 (W) × 192 (H) × 550 (D) mm (including the handle)
Weight: < 28kg
Power Supply: 100 – 120VAC, 50 – 60Hz; or 200 – 240VAC, 50 – 60Hz (self-adaptive)
