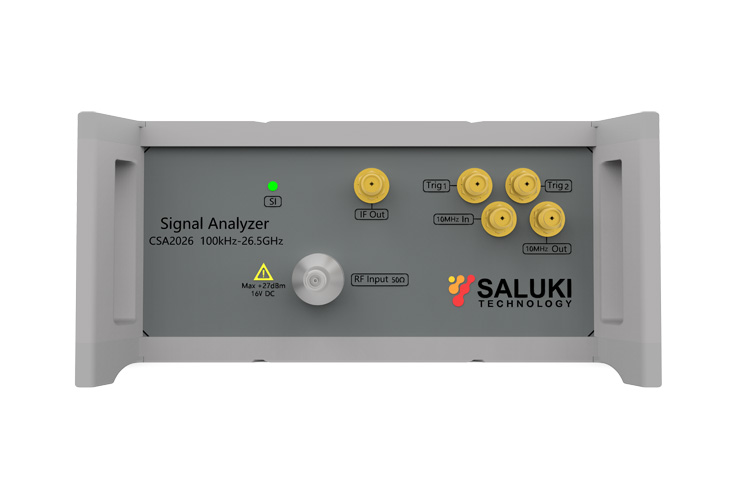

Frequency Range: 100 kHz to 26.5 GHz
Aging Rate: ±3×10-7/year
Scan Time
1μs to 6000s (span = 0Hz)
1ms to 4000s (span ≥ 10Hz)
Scan Accuracy: ±1% nominal (zero span)
Trigger Mode: Free run, video, external, RF burst, periodic timer
Scan (Trace) Point Range: 1 to 40001 (all spans)
Resolution Bandwidth: 1Hz to 3MHz (10% steps), 4, 5, 6, 8 MHz
Video Bandwidth: 1Hz to 3MHz (10% steps), 4, 5, 6, 8 MHz, and wide open (labeled 50MHz)
Amplitude Test Range: DANL to +27dBm (preamp off)
Max. Safe Input Level
Average total power:
+27dBm (0.5W), (≥ 10dB input attenuation , preamp off)
+27dBm (0.5W), (≥ 20dB input attenuation , preamp on)
Peak pulse power:
+47dBm (50W), (< 10μs pulse width, < 1% duty cycle, ≥ 30dB input attenuation)
SSB Phase Noise (CF=1GHz, Typ.)
-80 dBc/Hz @ 100Hz offset
-102 dBc/Hz @ 1kHz offset
-108 dBc/Hz @ 10kHz offset
-110 dBc/Hz @ 100kHz offset
-132 dBc/Hz @ 1MHz offset
Second Harmonic Distortion (SHI):
10MHz – 3.75GHz: +50dBm
3.75GHz – 13.25GHz: +62dBm
Connectors:
RF input: 2.92mm (female), 50Ω nominal
10MHz in: SMA (female), 50Ω nominal
10MHz out: SMA (female), 50Ω nominal
Trigger in: SMA (female), 10kΩ nominal
Trigger out: SMA (female), 50Ω nominal
Analog out: SMA (female), 50Ω nominal
Dimension: 150 (W) × 64 (H) × 175 (D) mm
Weight: 2.2kg
