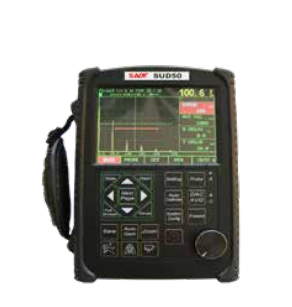

SADT SUD50 ເຄື່ອງກວດຈັບຂໍ້ບົກພ່ອງ Ultrasonic ດິຈິຕອນ (0.5~10000,Standard package)

Measuring range (mm): 0.5~10000

Frequency range (MHz): 0.5~20

Pulse shift (μs): -20~+3400

Vertical linearity error: ≤3%

Horizontal linearity error: ≤0.1%

Gain (dB): 0~120

Zero (μs): 0.0~99.99

Material velocity: 1000~15000 m/s

Sensitivity margin: ≥62dB

Dynamic scope: ≥34dB

Measurement mode: single, dual, THRU

Reject: 0~80%

Memory: 1000

Independence setup: 100

Make video: Unlimited

Continue working time: 12h

Display: LED True Color

Operating temperature: -20~55°C

Dimension: 238mm×160mm×48mm

Net weight: 1.0kg

Standards: JB/T 10061-1999, JJG 746-2004
