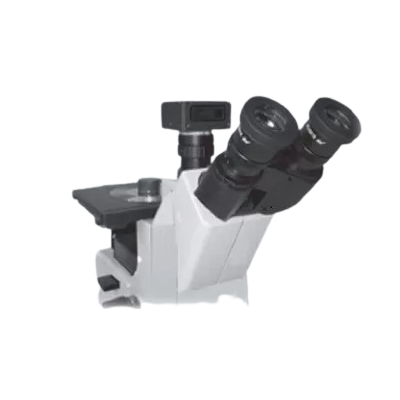

SADT SD100M ກ້ອງຈຸລະທັດໂລຫະ (10x,Standard package)

Optical: SADT infinity system

Observation method: Inverted, bright field

Magnification: 50X,100X,200X,500X, 1000X(Optional)

Focusing Mechanism: Low position coaxial focus system, coarse: 38mm per rotation, fine precision 0.002mm

Illuminator: Transmission Koehler illumination with alterable aperture diaphragm and centerable field diaphragm, with continuous intensity

Stage: 75mm X 40mm, precision:0.1mm

Eyepiece: 10x ,reticle eyepiece 10

Nosepiece: 5

Objective: 5x,10X,20X,50X,100X(optional)

Filter: Green Filter

Digital Imaging System: 3 million pixels CMOS, 1/2 target surface, Resolution: 2048*1546 (Optional)

Power supply: 90-240V

Dimension(mm): 520X265X330mm

Net weight (kg): 5
