Input Power: 220V±10%, 50Hz±10%
Air Pressure: 86～106kPa
Temperature: ≤80%RH, non-condensing
Relative Humidity: ≥2MΩ
Dielectric Strength: 1.5kV withstand voltage to chassis for 1 minute, no flashover and arcing
Timing Range: 250–4000ms, resolution 0.1ms; 10000–20000ms, resolution 1ms
Timing Accuracy: 0.1ms±1 digit / 1ms±1 digit
Speed Range: 20.00m/s, resolution 0.001m/s
Speed Accuracy: ±0.01m/s±1 digit
Current Range: 10A, resolution 0.01A
Current Accuracy: 1% ±0.1A
Output Power: DC5–270V digital adjustable, 10A (instant)
Applicable Types:
Vacuum Circuit Breaker – Range: 50mm
SF6 Circuit Breaker – Range: 300mm, Resolution: 0.1mm, Inaccuracy: 1%±1 digit
Minimum Circuit Breaker – Range: 1000mm

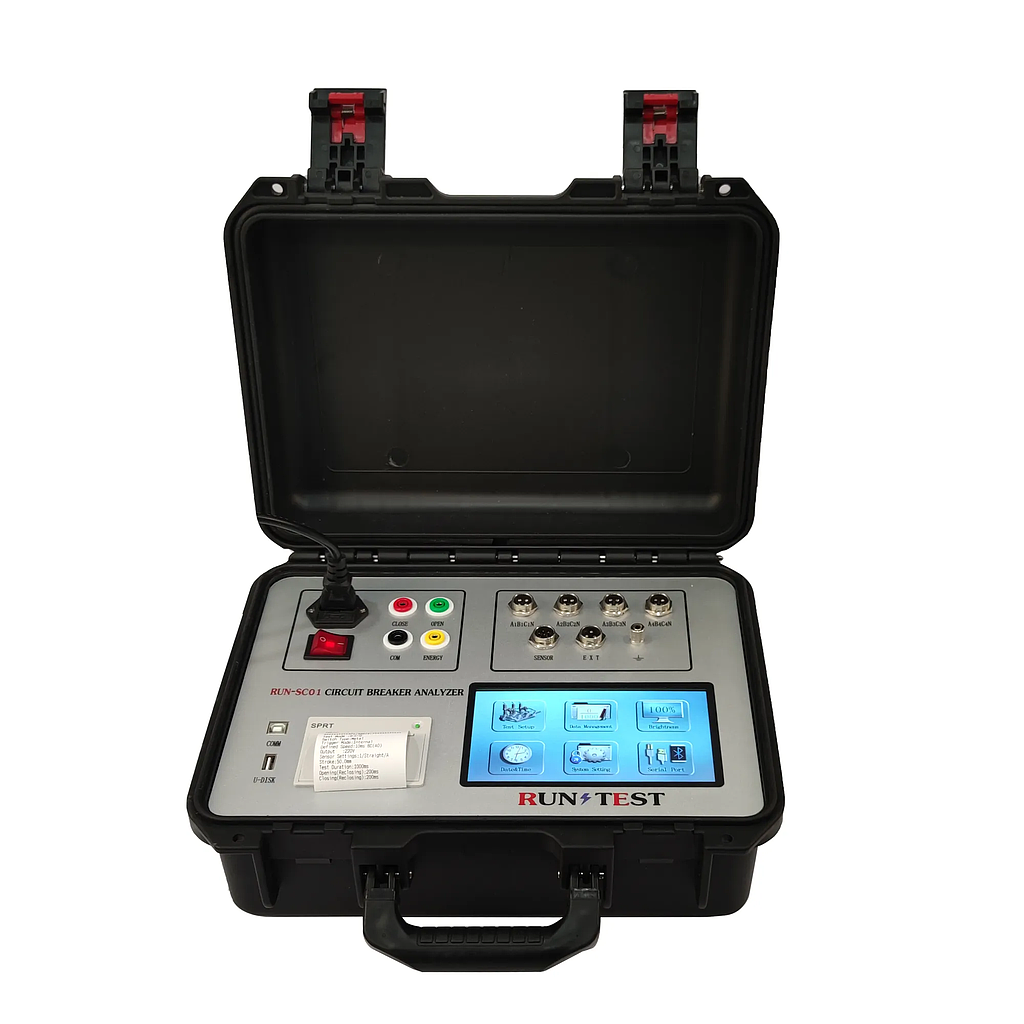

This circuit breaker analyzer can record and measure the closing bounce time, the number of bounces, the bounce process, and the bounce waveform of each fracture.
This tester can record and calculate the rigid points, rigidity, maximum speed, average speed, total travel, opening distance, over travel, rebound amplitude, time-travel characteristic curve.
Switch Dynamic Characteristics Analyzer can record the opening / closing current value and current waveform of the opening / closing coil, and provides DC5 ～ 270V / 10A (20A) digital adjustable circuit breaker operation power supply, automatically completes the low voltage operation test of the circuit breaker, and measures the open circuit.
Main features for Circuit Breaker Dynamic Characteristics Analyzer /Dynamic Characteristics Test Equipment
1. Measure the inherent opening and closing time of 12-way metal fracture, time tolerance in same phase, time tolerance in different phase, close-open time and no flow time in process of close-open, open-close, open-close-open, closing bounce time, Some models can measure the pre-cast time of the closing resistance.
2. Record and measure the closing bounce time, bounce times, bounce process, and bounce waveform of each fracture.
3. Record and measure opening/closing speed, maximum speed, average speed, overall limit, clearance, over travel limit switch, rebound amplitude, time-travel characteristic curve.
4. Record the opening/closing current value and current waveform of the opening/closing coil, and provides DC5-270V/10A (20A) digital adjustable circuit breaker operation power supply, automatically completes the low voltage test of the circuit breaker, and measures the operating voltage value of the device.
5. Simultaneously measure 6-way closing resistance value and its pre-casting time in some models.
Packing for Dynamic Characteristic Circuit Breaker Tester
We use strong wooden box packaging to ensure safety during transportation. And will attach a stretch film outside the product box and the wire box, so there is no need to worry about damage in product transportation. Here are the package for the test instrument.
