Pulse amplitude: 100Vp-p
Pulse width: 0.1uS and 2uS
Measuring distance: Smax：60Km , Smin:15m
inaccuracy: Absolute error: ±10m, relative error: ±1%
display: 5.7-inch LCD
Short circuit current: 0 ～300mA
Power supply: Lithium battery 6 hours continuous working, AC power
Sampling rate: 100MHz
Best resolution: 0.5m（100m/us）
Measuring method: Flashover sampling, low-voltage pulse sampling
Burn-through power: 0～1225J

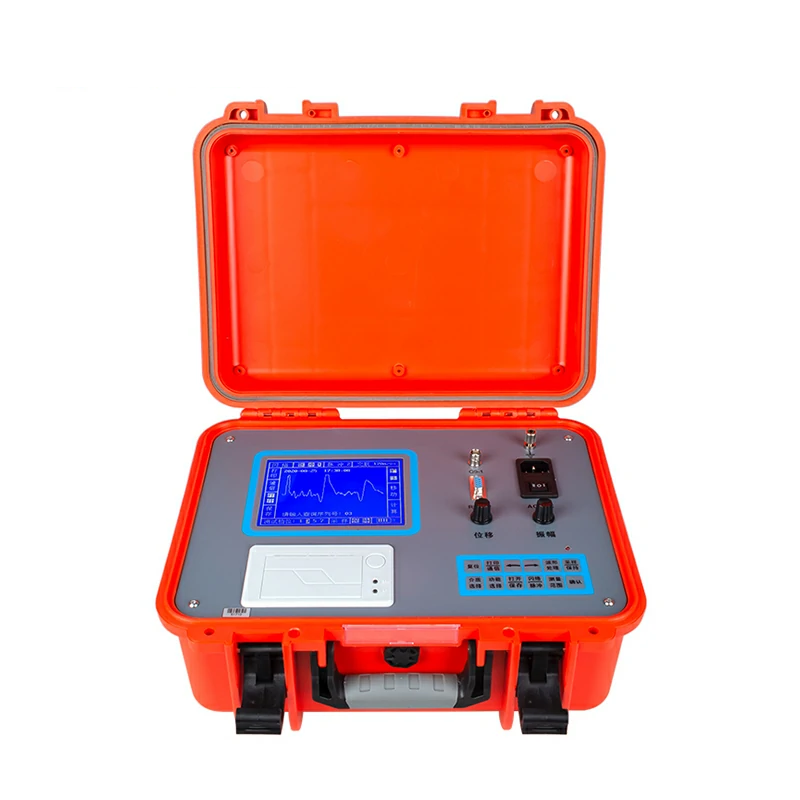

Features about the Tdr Cable Fault Locator
1.7-inch LCD, field angle > 160o
2.single-chip centralized control, key operation mode, strong anti-interference ability
3.Distance, speed and resistance measurement.
4.Automatic continuous sampling without missing a discharge waveform
5.Built-in micro-printer
6.Automatic analysis of the fault distance
7.Fully automatic continuous sampling, never miss any discharge waveform
