Ruixian RX-A8800HC ກ້ອງຈຸລະທັດເອເລັກໂຕຣນິກ (21X-135X, 1GHz, includes an optical microscope, 8MP observation and recording camera (model RXA8800HC), and LED light for the microscope)

Camera Specifications:

Image Sensor: 1/2 inch

Chip Structure: HIS + ARM

Sensor Pixel Size: 2.4µm x 2.4µm

Frame Rate: 60fps

Resolution: 3840 x 2160 pixels

Scanning Frequency: 1GHz

Core Architecture: Dual-core Cortex A9

Operating System: Linux

Camera Functions

White balance

Color adjustment

Cross marks

Saturation contrast setting

Measurable photo and video recording

Precise measurement

HDR for contrast elimination

Working Voltage: 5-12VDC

2 USB Ports: USB storage and mouse

Connection Method: High-definition HDMI digital interface for direct connection to monitor

Standard Lens Specifications:

Photo Eyepiece: 0.5X

Industrial Continuous Zoom Lens: 0.7X~4.5X

Working Height: 110mm

Field of View: Standard 2.6mm22mm, extended 0.6mm34mm

Magnification: 21X-135X (reference for 21.5-inch display), expandable up to 800X

Focusing Mechanism: Manual focus knob with an up-and-down range of 1mm~60mm

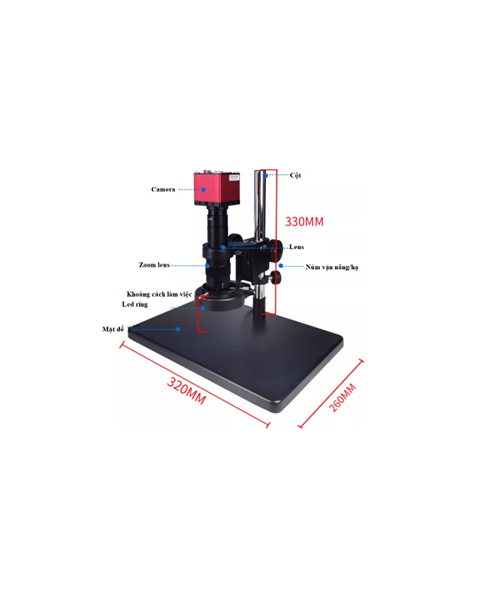

Microscope Base Specifications:

Base Material Dimensions: Anti-static coated aluminum

Base Dimensions: Length 320mm x Width 260mm x Thickness 25mm

Included

Optical microscope

8MP observation and recording camera (Model RXA8800HC)

LED light for microscope
