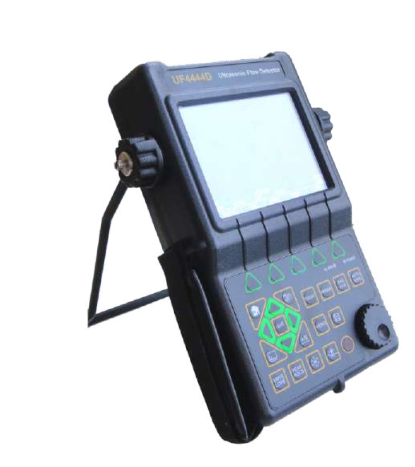

RTUL UFD 4444D Portable Ultrasonic Flaw Detectors (10 mm – 9999 mm, 0.5 – 15 MHz)
Overall Dimensions: 263 x 170 x 61 mm
Weight: 1.9 Kg
Battery Type & Life: Lithium ion batteries, 8 hours
Display Type: TFT
Voltage Supply: 7.2V DC
Test Modes: Pulse Echo/Through Transmission
Operating Mode: Single/ Double Probe, T/R mode
Range: 10 mm - 9999 mm
Velocity: 300-15000 m/s
Bandwidth: 0.5-15 MHz
Sensitivity: 140 ± 3dB
Gain Control: 103 dB in min 1 dB steps
Horizontal Linearity: ≤0.2%
Vertical Linearity: ≤3%
Ambient Temperature: (-20~50)°C
Spike Excitation: 200 V, 300 V, 400 V, 500 V, 600 V
Pulse Repetition Rate: 10 to 1000 Hz
Pulse Width: Adjustable
Damping: 68, 130, 500
Real-Time Sampling: 160 Mhz
Rectification: Full wave, half wave, RF
DB Step: 0.1 dB, 1 dB, 2 dB, 6 dB
Memory: 100 channel files/ 1000 A-Scan wave files
