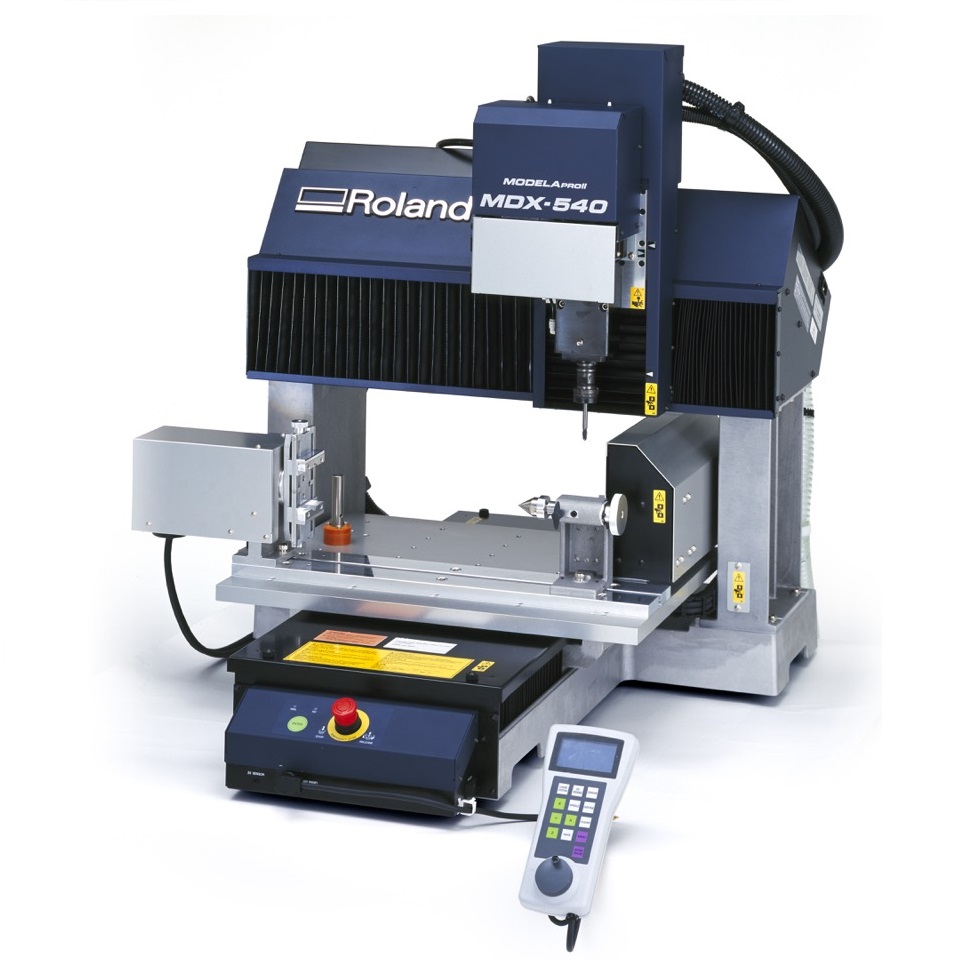

Cuttable material: Plastic resin and light metal
XYZ-axis travels (XxYxZ): 500x400x155 mm (19.6x15.7x6.1 in.)
Distance from spindle nose to table: Maximum 254 mm (10 in.)
Table size (WxD): 550x420 mm (21.7x16.5 in.)
Loadable workpiece weight: At acceleration of 0.2 G: maximum 12 kg (26 lb.), 0.1 G: 20 kg (44 lb.), 0.05 G: 20 kg (44 lb.)
XYZ-axis drive system: AC servo motor, 60 W
Operating speed: Maximum 7.5 m/min (295 in./min)
Acceleration: 0.2 G, 0.1 G, 0.05 G
Software resolution: RML-1 mode: 0.01 mm (0.0004 in.), NC-code mode: 0.001 mm (0.00004 in.)
Mechanical resolution: 0.001 mm (0.00004 in.)
Positioning accuracy: ±0.1 mm/300 mm (±0.004 in./12 in.), under no-load conditions
Repeat accuracy: ±0.05 mm (±0.002 in.), under no-load conditions
Spindle motor: DC brushless motor, maximum 400 W
Spindle speed: 400 to 12,000 rpm; 400 to 3,000 rpm for positioning and centering
Interface: USB (compliant with Universal Serial Bus Specification Revision 1.1)
Power supply:
- Voltage and frequency: AC 100 to 120 V/220 to 240 V ±10%, 50/60 Hz
- Required power capacity: 7 A (100 to 120 V)/4 A (220 to 240 V)
Power consumption: Approx. 700 W
Acoustic noise level:
- During operation (no cutting): 65 dB (A) or less
- During standby: 40 dB (A) or less (according to ISO 7779)
Dimensions (WxDxH): 745x 955x858 mm (29.3x37.6x33.8 in.)
Weight: 102 kg (225 lb.)
Operating temperature: 5 to 40°C (41 to 104°F)
Operating humidity: 35 to 80% (no condensation)
Included items: Handy panel, power cord, tool sensor, sensor cable, nut, nut wrench, wrench, hexagonal wrench, Roland Software CD-ROM, SRP Player CD-ROM, User's Manual, Roland Software Guide, SRP Player Installation and Setup Guide, NC Code Reference Manual
Optional items:
High precision spindle unit: ZS-540TY
Automatic tool changer: ZAT-540
Rotary axis unit: ZCL-540
T-Slot table: ZTT-540
Safety cover: ZBX-540E
