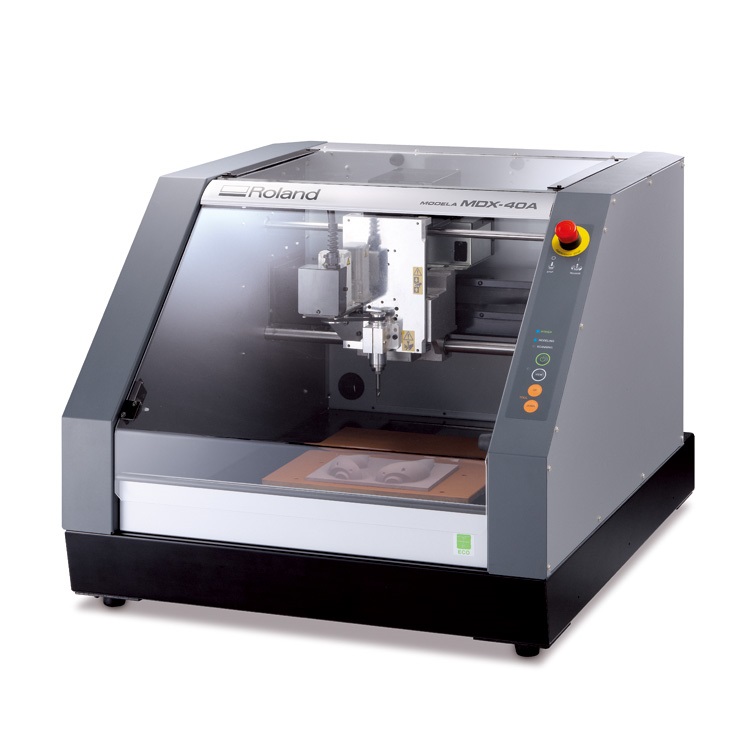

ROLAND MDX-40A ເຄື່ອງ 3D Milling (4500~15000 rpm)
Acceptable material: Resins such as chemical wood and modeling wax (metal not supported)
X, Y, and Z operation strokes: 305(X)x305(Y)x105(Z) mm (12(X)x12(Y)x4.13(Z) in.)
Distance from collet tip to table: Maximum 123 mm (4.84 in.)
Table size: 305(W)x305(D) mm (12(W)x12(D) in.)
Loadable workpiece weight: 4 kg (8.8 lb)
XYZ-axis drive system: Stepping motor
Feed rate: XY-axis: 7 to 3,000 mm/min. (0.28 to 118 in./m)
Z-axis: 7 to 1,800 mm/min. (0.28 to 70.8 in./m)
Software resolution:
NC-code: 0.001mm/step (0.000039 in./step),
RML-1: 0.01 mm/step (0.00039 in./step)(RML-1)
Mechanical resolution: 0.002 mm/step (0.000078 in./step) (micro-step control)
Spindle motor: Brushless DC motor, Maximum 100 W
Spindle rotation: 4,500 to 15,000 rpm
Interface: USB
Power requirements: AC100 to 240 ±10%, 2.1 A, 50/60 Hz (Overvoltage category II, IEC 60664-1)
Power consumption: Approx. 210 W
Acoustic noise level: No-load operation: 56 dB (A) or less, Standby: 42 dB (A) or less
Dimensions: 669(W)x760(D)x554(H) mm [26.4(W)x30(D)x21.9(H) in.]
Weight: 65 kg (144 lb)
Environment: Temperature: 5 to 40 °C (41 to 104 °F),
Humidity: 35 to 80% (no condensation)
Included items: Power cord, USB cable, collet (ZC-23-6), Z0 sensor, hexagonal wrench, hexagonal screwdrivers, spanners, Roland Software Package CD-ROM, SRP Player CD-ROM, user's manual, SRP Player installation and setup guide
Optional items:
Square end-mills
Ball end-mills
Collets (for end-mills)
Engraving cutters (for plastic)
Engraving cutters, quarter round (for plastic)
Engraving cutters, parallel (for plastic)
Solid collet
Adhesive sheet for securing material
Rotary axis unit
3D Scanning sensor unit
Replacement spindle unit
Dust box
