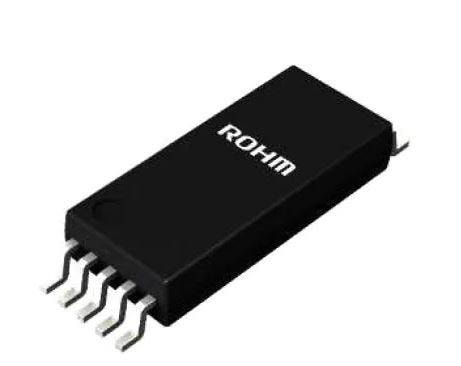

ROHM Semiconductor BM61S40RFV-CE2 ໄວ້ເວີສະໄລເຊັນ High-Side, Low-Side ກັບໄຟຟ້າປົກກະຕິ 3750Vrms 1ch Gate Driver ທີ່ມີການປົກກະຕິ Galvanic Isolation; BM61S40RFV-C ແມ່ນ gate driver ທີ່ມີໄຟຟ້າປົກກະຕິ 3750 Vrms, ເວລາລໍຖ້າ I-O 65ns, ແລະຄວາມກວ້າງພິມພິມຂອງອິນພຸດຢ່າງນ້ອຍ 60ns. ມັນລວມມີ Under-Voltage Locko

Shutdown: No Shutdown

Fall Time: 15 ns

Rise Time: 15 ns

Technology: SiC

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Off Time - Max: 55 ns

Output Current: 4 A

Development Kit: BM61S40RFV-EVK001, BM61S40RFV-EVK002

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Supply Voltage - Max: 20 V, 5.5 V

Supply Voltage - Min: 16 V, 4.5 V

Propagation Delay - Max: 10 ns

Operating Supply Current: 2 mA

Maximum Turn-On Delay Time: 65 ns

Maximum Turn-Off Delay Time: 65 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 670 mOhms
