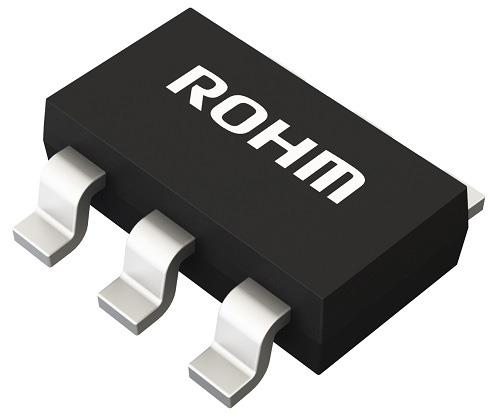

ROHM Semiconductor BD9E200FP4-ZTL Single Synchronous Buck DC to DC Converter 4.5V to 26V Input, 2.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter: BD9E200FP4-Z is a single synchronous buck DC/DC converter with built-in low on-resistance power MOSFETs. The Light Load Mode control provides excellent efficiency char

Shutdown: Shutdown

Topology: Buck

Input Voltage: 4.5 V to 26 V

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 700 mV to 20.8 V

Development Kit: BD9E200FP4-EVK-001

Number of Outputs: 1 Output

Quiescent Current: 95 uA

Input Voltage - Max: 26 V

Input Voltage - Min: 4.5 V

Switching Frequency: 500 kHz

Supply Voltage - Min: 4.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
