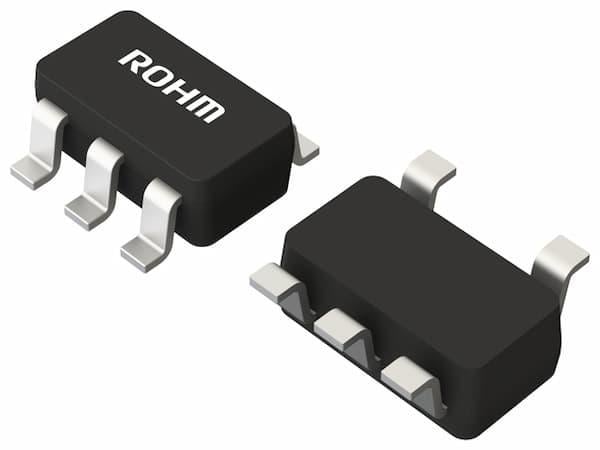

ROHM Semiconductor BD933N1G-CTR Nano Cap LDO Regulator ຕົວຄວບຄຸມ LDO ອອກສະໝັກຄົງທີ່

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 150 mA

Output Voltage: 3.3 V

Dropout Voltage: 780 mV

Line Regulation: 0.05 %

Load Regulation: 0.1 %

Number of Outputs: 1 Output

Input Voltage - Max: 42 V

Input Voltage - Min: 3 V

Dropout Voltage - Max: 1.8 V

Ib - Input Bias Current: 8 uA

Operating Supply Current: 28 uA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 70 dB
