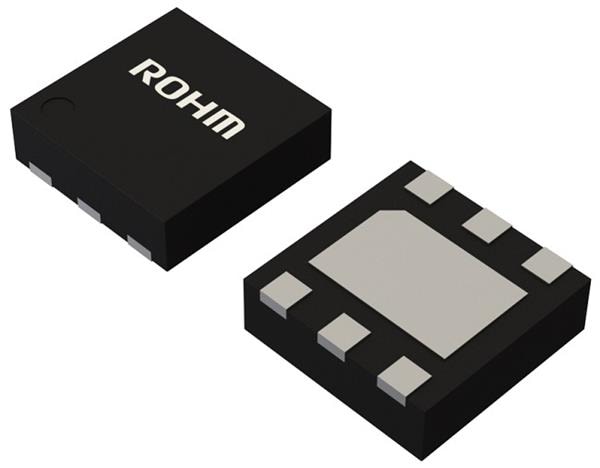

ROHM Semiconductor BD2311NVX-LBE2 ກາດ ໄດເວີ Single-channel Ultra-Fast Gate Driver ສໍາລັບການເຄື່ອນໄຫວອຸປະກອນ GaN

Shutdown: No

Fall Time: 700 ps

Rise Time: 650 ps

Technology: Si

Configuration: Inverting, Non-Inverting

Mounting Style: SMD/SMT

Off Time - Max: 4.6 ns

Output Current: 2.7 A, 5.4 A

Number of Drivers: 1 Driver

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 4.5 V

Operating Supply Current: 38.7 mA

Maximum Turn-On Delay Time: 5 ns

Maximum Turn-Off Delay Time: 4.6 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
