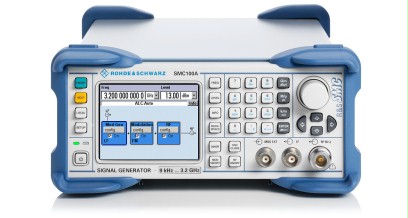

Manufacturer: Rohde&Schwarz
Model : SMC100A+SMC-B101
Warranty : 12 months
Frequency range: 9 kHz to 1.1GHz
Power supply
- AC input voltage range: 100 V to 240 V; ±10 %
- AC supply frequency: 50 Hz to 60 Hz, –5 %/+10 %
- Max. input current: 1.2 A (100 V) to 0.4 A (240 V)
- Power consumption: 45 W
Resolution of setting: 0.001 Hz
Dwell time setting range: 10 ms to 10 s
Max. output power: +13 dBm(f = 200 kHz to 3.2 GHz); >+17 dBm (f ≥500 kH)
Level error: (f = 200 kHz to 3.2 GHz) <0.9 dB
Back-feed
1 MHz ≤ f ≤ 1 GHz: 50 W
1 GHz ≤ f ≤ 2 GHz : 25 W
2 GHz ≤ f ≤ 3.2 GHz : 10 W
Maximum permissible DC voltage: 50 V
Spectral purity
Nonharmonics : <-60 dBc (typ. -72 dBc)
SSB phase noise: <-105 dBc (typ. -111 dBc)
Wideband noise: <-138 dBc (typ. -146 dBc)
AM depth: 0 % to 100 %
Rise/fall time : <500 ns (typ. 100 ns)
Minimum pulse width : 1 μs
ON/OFF ratio : >80 dB
Peripherals : USB
Weight: 3.9 kg (8.6 lb)
Dimensions (WxHxD): 236 mm × 112 mm × 368 mm
Scope of Delivery: Power Cable, Quick Start Guide.
