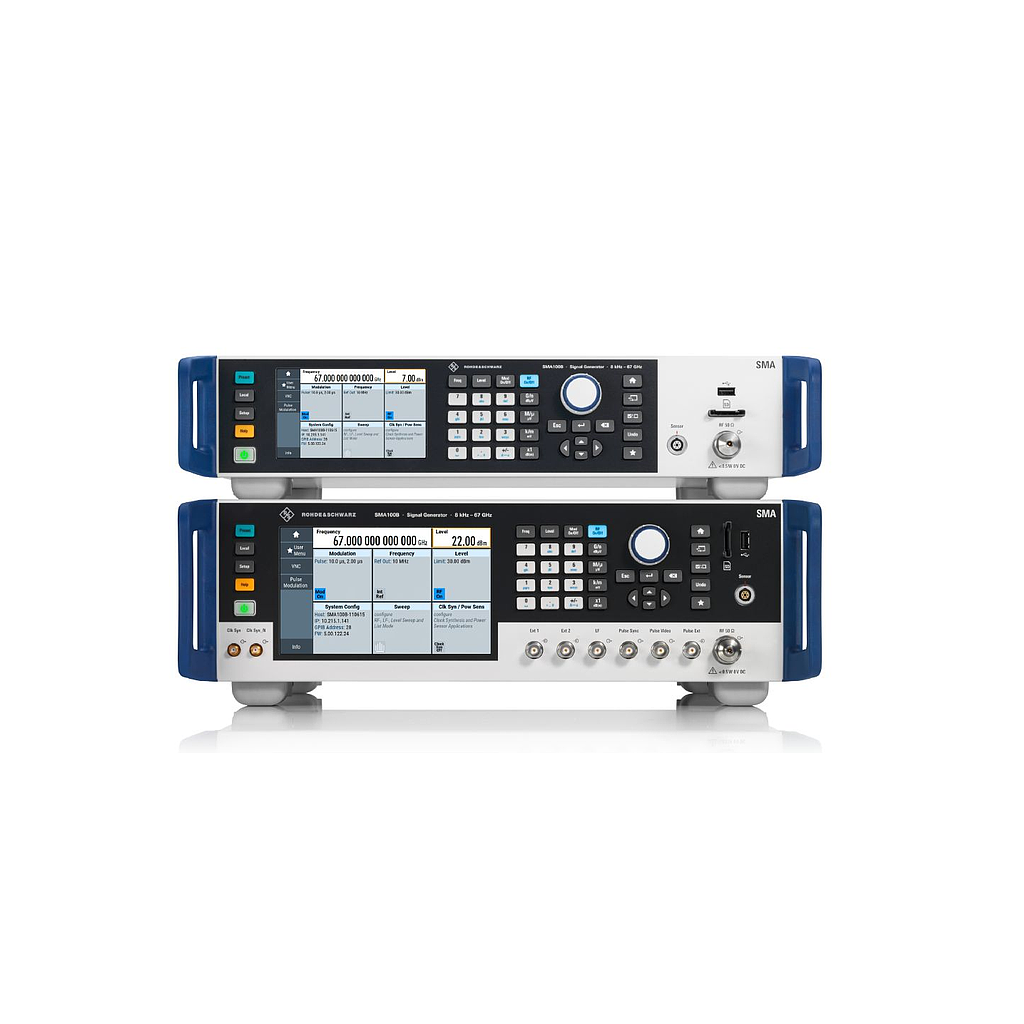

Rohde & Schwarz SMA100B RF ແລະເຄື່ອງກໍາເນີດສັນຍານໄມໂຄເວຟ
Frequency range: 8 kHz - 3 GHz/6 GHz/12.75 GHz/20 GHz/31.8 GHz/40 GHz/50 GHz/67 GHz
Aging rate: ≤ 3 x 10^-8/year
Frequency resolution: 0.001 Hz
Output amplitude range: -127 dBm ~ +30 dBm
Amplitude accuracy: < 0.5 dB
Reflected power protection level: 50 V; 0.5 W
VSWR: < 1.6
Sweep type: Frequency, Level, Frequency + Level
Harmonic distortion: < -30 dBc
Non-harmonic distortion: < -85 dBc
Wideband noise: < -150 dBc (carrier offset: 10 MHz)
Single sideband phase noise: -140 dBc/Hz (typ.) (@f = 1 GHz; offset: 20 kHz)
Modulation types: AM, FM, PM, Pulse
Baseband frequency: 0.1 Hz to 1 MHz
Signal bandwidth (RF): N/A
Signal length: N/A
Reference signal input: BNC female/10 MHz, 1 MHz-100 MHz/0 dBm - 20 dBm
Reference signal output: BNC female/10 MHz, 100 MHz/7 dBm-14 dBm
Interfaces: USB; LAN; GPIB
Display: 7"
Power supply: 100 V ~ 240 V AC
Operating temperature: 0 °C ~ +55 °C
Integrated features: Pulse train generation; Chirp pulse generation.
