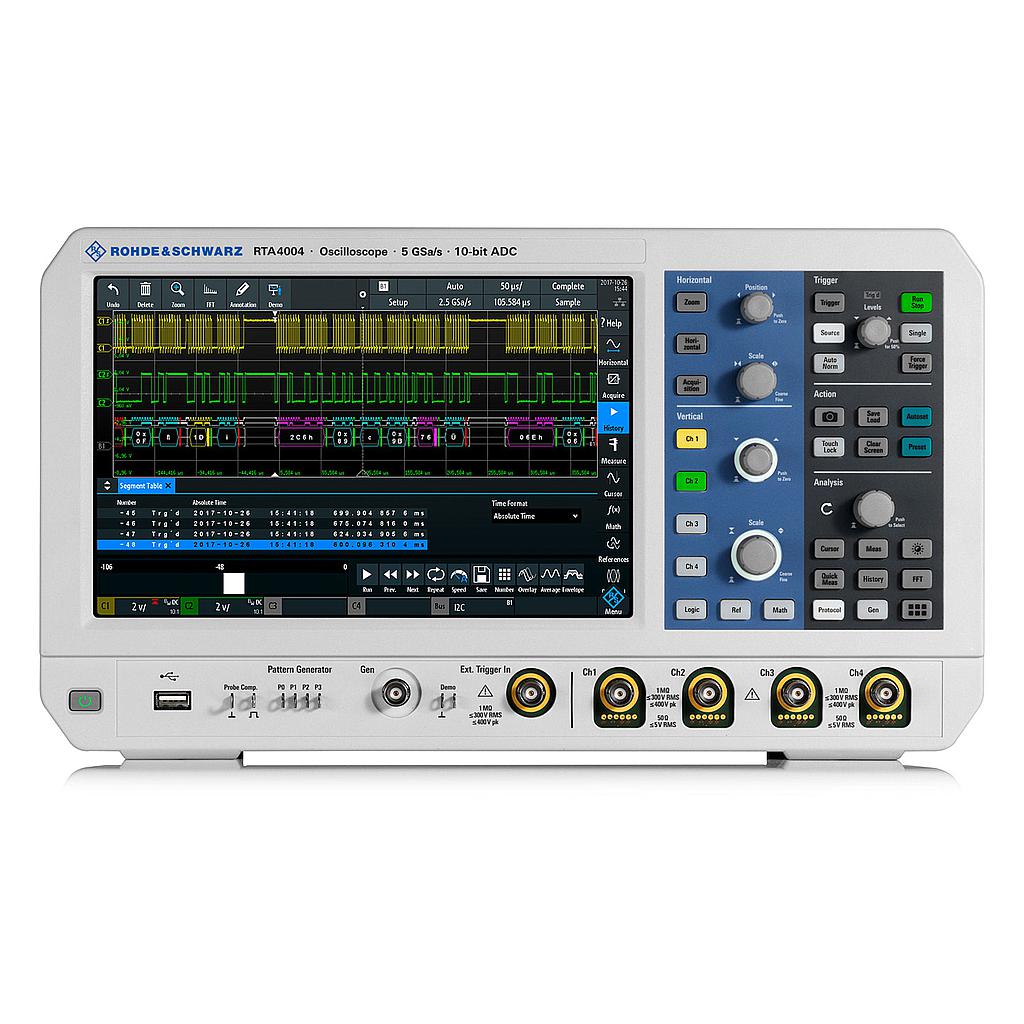

Bandwidth: 350 MHz
Channels: 4
Max. Sample Rate: 5Gsa/s
Max.Memory Depth: 200 Msample
Rise time : 3.5 ns
Optional MSO: 16 digital channels,2.5 Gsa/s, 10 Msample
Signal Generator (Optional) : 14 bit, 250Msa/s
ADC resolution: 10 bit, up to 16 bits
Input impedance : 50 MΩ, 1 MΩ
Input sensitivity:
- at 1 MΩ: 500 μV/div to 10 V/div
- at 50 MΩ: 500 μV/div to 1 V/div
DC gain accuracy
input sensitivity > 5 mV/div: ±1 % of full scale
input sensitivity ≤ 5 mV/div to ≥ 1 mV/div: ±1.5 % of full scale
input sensitivity < 1 mV/div: ±2.5 % of full scale
Timebase range : selectable between 0.5 ns/div and 500 s/div
Screen : 10.1" WXGA TFT color display (1280 × 800 pixel)
Interfaces: USB host with MTP, USB device, LAN, powerful web server for remote display and operation
Dimensions: (W × H × D) 390 mm × 220 mm × 152 mm
Weight : 3.3 kg
Scope of delivery: Power Cord; R&S RT-ZP10 single-ended pasive probes for each channel
