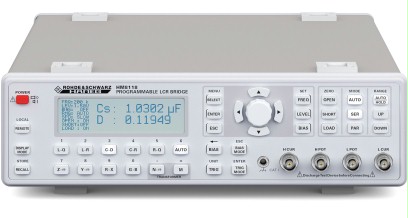

Manufacturer: Rohde & Schwarz
Model: HMC8118
Warranty: 12 months
Measurement range: 20 Hz to 200 kHz (69 steps)
Basic accuracy: 0.05 %
Measurement rate: up to 12 values/s
Automatic or manual selection of circuit type (serial, parallel)
Measurement functions: L, C, R, Z, X, Y, G, B, D, Q, Φ, ∆, M, N
Transformer measurement: mutual inductance and ratio
Internal: 0 V to 5 V/0 mA to 200 mA (resolution: 10 mV/1 mA)
External: 0 V to 40 V (bias voltage only)
RS-232/USB dual interface for remote control, optionally IEEE-488 (GPIB) Fanless design
Measurement time (f ≥1kHz)
FAST 70ms
MEDIUM 125ms
SLOW 0.7s
Power supply 110V to 230V ±10%, 50 to 60Hz, CAT II
Power consumption approx. 20W
Operating temperature +5°C to +40°C
Storage temperature -20°C to +70°C
Rel. humidity 5% to 80% (non condensing)
Dimensions (W x H x D) 285 x 75 x 365mm
Weight approx. 4kg
Accessories supplied: Line cord, operating manual, R&S®HZ184 4-terminal kelvin test cable, R&S®HZ188
4-terminal SMD component test fixture
