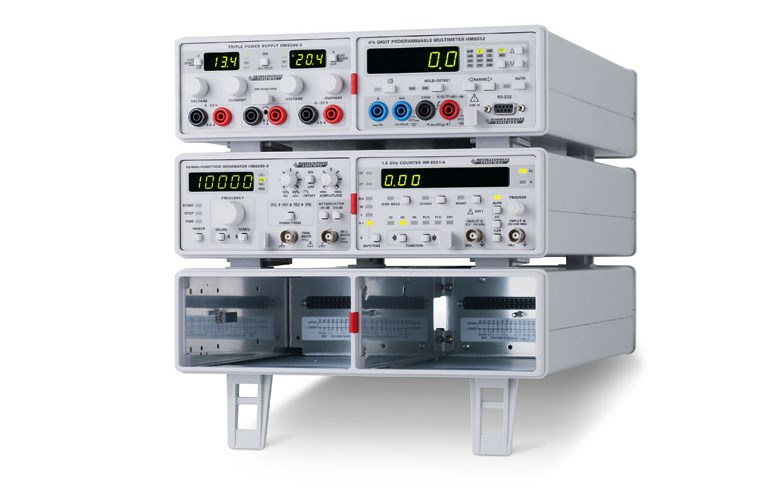

Manufacturer: Rohde & Schwarz
Model: HM8001-2
Warranty: 12 months
Function generator: up to 10 MHz, up to 10 Vpp waveforms: sine, triangle, square wave, pulse, DC
Triple power supply: 2 x 0 V to 20 V/0.5 A,1 x 5 V/1 A
LCR meter
Measurement functions: L, C, R, Θ, Q, D, |Z|
Basic accuracy: 0.2 %
4¾-digit multimeter: 50 000 counts
Basic accuracy: 0.05 %
HM8030-6 function generator
- Frequency range: 50 mHz to 10 MHz
- Output voltage: up to 10 Vpp (into 50Ω)
- Waveforms: sine, triangle, square wave, pulse, DC
- Distortion: < 0.5 % up to 1 MHz, rise and fall time of typ. 15 ns
HM8040-3 triple power supply
- 2 x 0 V to 20 V/0.5 A; 1 x 5 V/1 A
- 3-digit switchable displays for current and voltage
- Display resolution: 0.1 V/1 mA
- Adjustable current limiting and electronic fuse
HM8018 LCR meter
- Measurement functions: L, C, R, Θ, Q/D, |Z|
- Basic accuracy: 0.2 %
- Meas. frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 25 kHz
- Max. resolution: 0.001 Ω, 0.001 pF, 0.01 µH
HM8012 4¾-digit multimeter
- 4¾-digit display with 50 000 counts
- Basic accuracy: 0.05 %
- Max. resolution: 10 µV, 0.01 dBm, 10 nA, 10 mΩ, 0.1 °C
- Offset function and relative value measurements
HM8001 mainframe
- Module supply voltages:
2 x 8 V (AC), max. 5.5 A each
2 x 5 V (DC), max. 1 A each
4 x 20 V (DC), max. 0.5 A each
- Power consumption per module: max. 25 W
- DC voltages electronically regulated, floating and short-circuit proof
