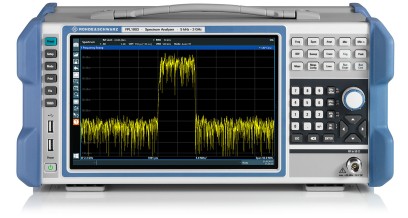

Rohde&Schwarz FPL1003 Spectrum Analyzer (5kHz~3GHz)
Manufacturer: Rohde&Schwarz
Model : FPL1003
Warranty : 12 months
Frequency range: 5 kHz to 3 GHz
Frequency resolution: 0.01 Hz
Aging per year:1 × 10–6; with R&S®FPL1-B4 option1 × 10–7
Frequency range span : 0Hz, 10hz ~ 3Ghz
Resolution bandwidth (–3 dB):
+ Sweep filter: 100 kHz to 10 MHz
+ FFT filter: 1 Hz ~ 50Khz
Phase noise: -107dBc (1Hz) @ 1Khz
DANL " -146dBm with 5 kHz ≤ f < 100 kHz, Amplifier off.
Sweep time:
+ 1us ~ 8000s @ span =0hz.
+ 1ms to 8000s @ span >=10Hz, RBW>=100Khz
Measure signal: DANL ~ +30dBm
Max input signal: 50V
Input Impedance: 50 Ω
Communication: LAN, USB và GPIB (Optional)
Display: 21 cm LC TFT color display (10.1")
Input Voltage: 100 V to 240 V ± 10%,50/60Hz
Dimension: 408x186.1x235mm, 6kg.
