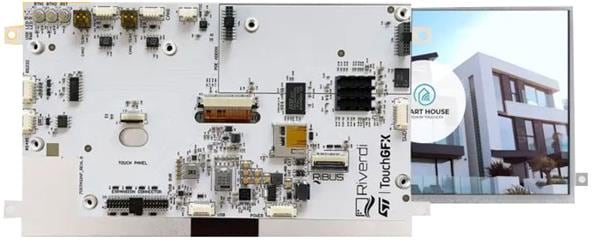

Riverdi SM-RVT70HSSFWN00 ຈໍ TFT LCD 5.0", STM32, ກະບັດ, ບໍ່ມີຈິດສະຕິ

Diagonal: 7 in

Brightness: 1000 cd/m2

Touch Panel: Without Touch Panel

Backlighting: LED

Display Mode: Transmissive

Viewing Angle: 85 deg

Interface Type: CAN, RiBUS, RS232, RS485, USB

Mounting Style: Panel

Viewing Area - W x H: 156.9 mm x 89.63 mm

Module Size - W x H x T: 181.6 mm mm x 100.6 mm mm x 19.15 mm

Operating Supply Current: 122 mA to 790 mA

Operating Supply Voltage: 6 V to 48 V

Display Resolution - Pixels: 1024 x 600

Operating Temperature Range: - 20 C to + 70 C

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
