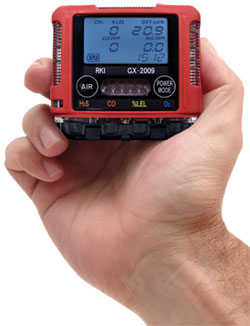

Riken Keiki GX-2009 Smallest Four Gas Confined Space Monitor

Name: Riken Keiki GX-2009 Smallest Four Gas Confined Space Monitor
Brand: Riken Keiki

ຜູ້ຜະລິດRiken Keiki(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelGX-2009

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Gas Detected	All Combustible Gases (Methane as standard)	Oxygen (O2)	Hydrogen Sulfide (H2S)	Carbon Monoxide (CO)
Detection Principle	Catalytic combustion	Galvanic cell	Electrochemical cell
Detection Range	0~100% LEL	0~40.0% Vol. (0.1% Vol.)	0~100 ppm (0.5 ppm)	0~500 ppm (1 ppm)
Accuracy Statement (whichever is greater)	± 5% of reading or ± 2% LEL	± 0.5% O2	± 5% of reading or ± 2 ppm H2S	± 5% of reading or ± 5 ppm CO
Sampling Method	Diffusion sampling standard / hand aspirator or motorized pump optional
Display	Digital LCD displays all four gases simultaneously, with auto backlight
Alarm Method	Gas alarms: 1st and 2nd (user adjustable), STEL, TWA and OVER Trouble alarms: Sensor connection, low battery, low flow, circuit trouble and calibration error
Types of Alarms	Gas Alarm: 2 increasing alarms, STEL, TWA, overscale alarm Trouble alarm: Sensor disconnection, wire disconnection, low battery, circuit error, calibration range error
Operating Temp. & Humidity	-4°F to 122°F (-20°C ~ +50°C), 0 to 95% RH, non-condensing (splash resistant)
Response Time	Within 30 seconds (T90)
Continuous Operation	20 hours after a 3 hour full charge (14 hours after 90 min charge)
Power Source	Direct charging NiMH batteries, set of 2
Safety Design	IECEx zone 0 Ex ia IIC T4; ATEX II 1G Ex ia IIC T4; CSA classified, “C/US”, as intrinsically safe. Class I, Division 1, Groups A, B, C, D
Dimensions & Weight	2.7” H x 3” W x 1” D (Approx. 70 H x 75 W x 25 D mm), 4.6 ounces (approx. 130g)
Case Material	RFI shielded high impact over molded rubber. Dust and water-resistant with IP-67 approval.
Controls	Two glow in the dark buttons: POWER / MODE, AIR
RequiredAccessories	Battery charger
Standard Accessories	Battery charger, Alligator clip, NiMH batteries (set of 2)
Optional Accessories	Belt Clip Padded carrying case for GX-2009 and accessories Charging station, 115/220 VAC powered for 2, 3, 4, or 5 instruments Charging station with 12 VDC power supply and vehicle adapter plug 12 VDC adapter with vehicle plug (does not include charger base) RP-6 sample drawing pump with 10’ hose and probe Hand aspirated sample draw with 10’ hose and probe
Configurations	4 gas (LEL / O2 / H2S / CO), 3 gas (LEL / O2 / H2S), 3 gas (LEL / O2 / CO), 2 gas (LEL / O2), 2 gas (O2 / H2S), 2 gas (O2 / CO)
Warranty	Two years material and workmanship

Datasheet
