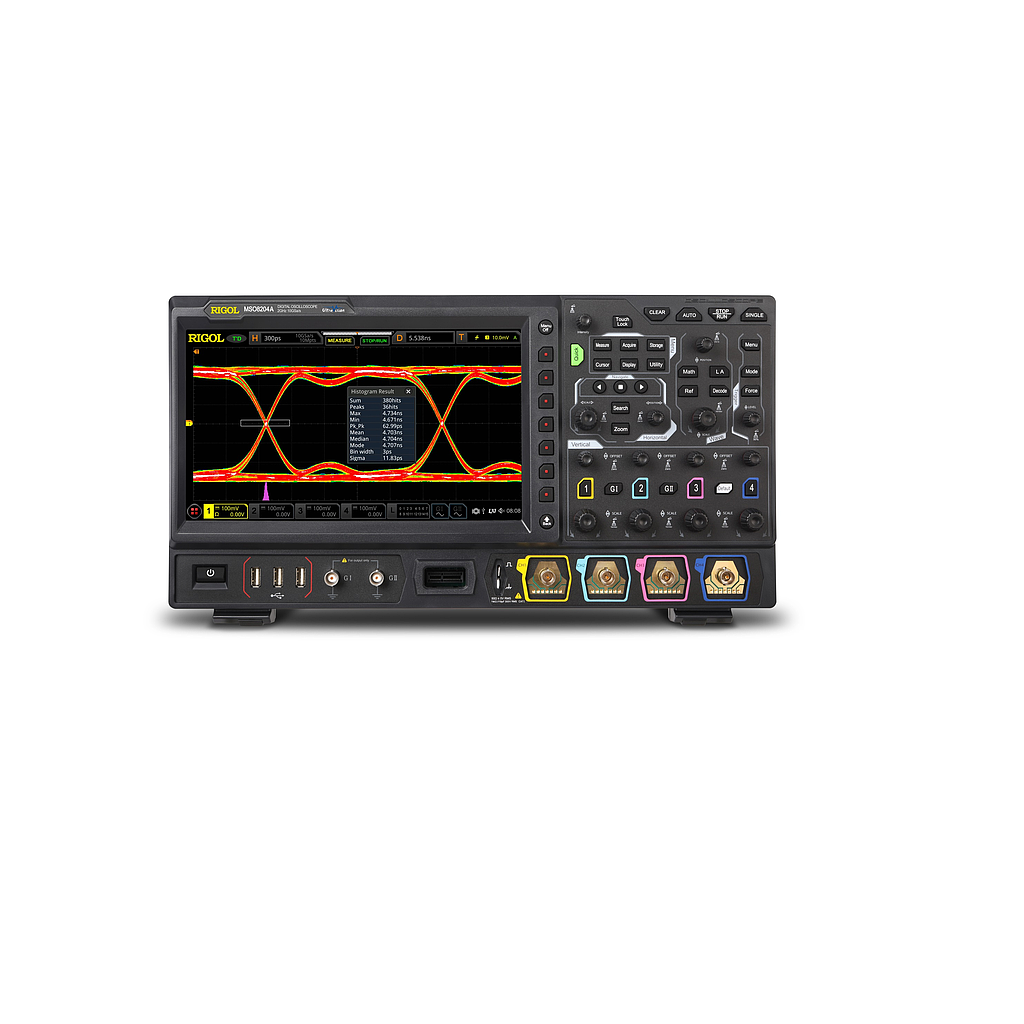

RIGOL MSO8204A ອອດຊິວໂລສະໂຄບດິຈິຕອນ (2 GHz, 10 GSa/s, 500 Mpts, 4+16 CH MSO)
Analog bandwidth (50 Ω, -3 dB): 2 GHz
Analog bandwidth (1 MΩ, -3 dB): 500 MHz
Calculated Rising Time under 50 Ω (half-channel mode, 10%-90%, typical): ≤206 ps
No. of Input/Output Channels:
4 input analog channels
1 input EXT channel
16 input digital channels (required to purchase the RPL2316 logic analyzer probe) dual-channel arbitrary waveform generator output(required to purchase the MSO8000-AWG option)
Sampling Mode: Real-time Sampling
Max. Memory Depth
Analog channel: 500 Mpts (single-channel), 250 Mpts (halfchannel[2]), 125 Mpts (full-channel)
digital channel: 62.5 Mpts (full-channel)
Max. Waveform Capture Rate[3]: ≥600,000 wfms/s
Hardware Real-time Waveform Recording and Playing : ≥450,000 wfms (single-channel)
Peak Detection: Capture 400 ps glitches
LCD Size and Type: 10.1-inch capacitive multi-touch screen/gesture enabled operation
Display Resolution: 1024 × 600
*For detailed specifications, please refer to the datasheet below.
