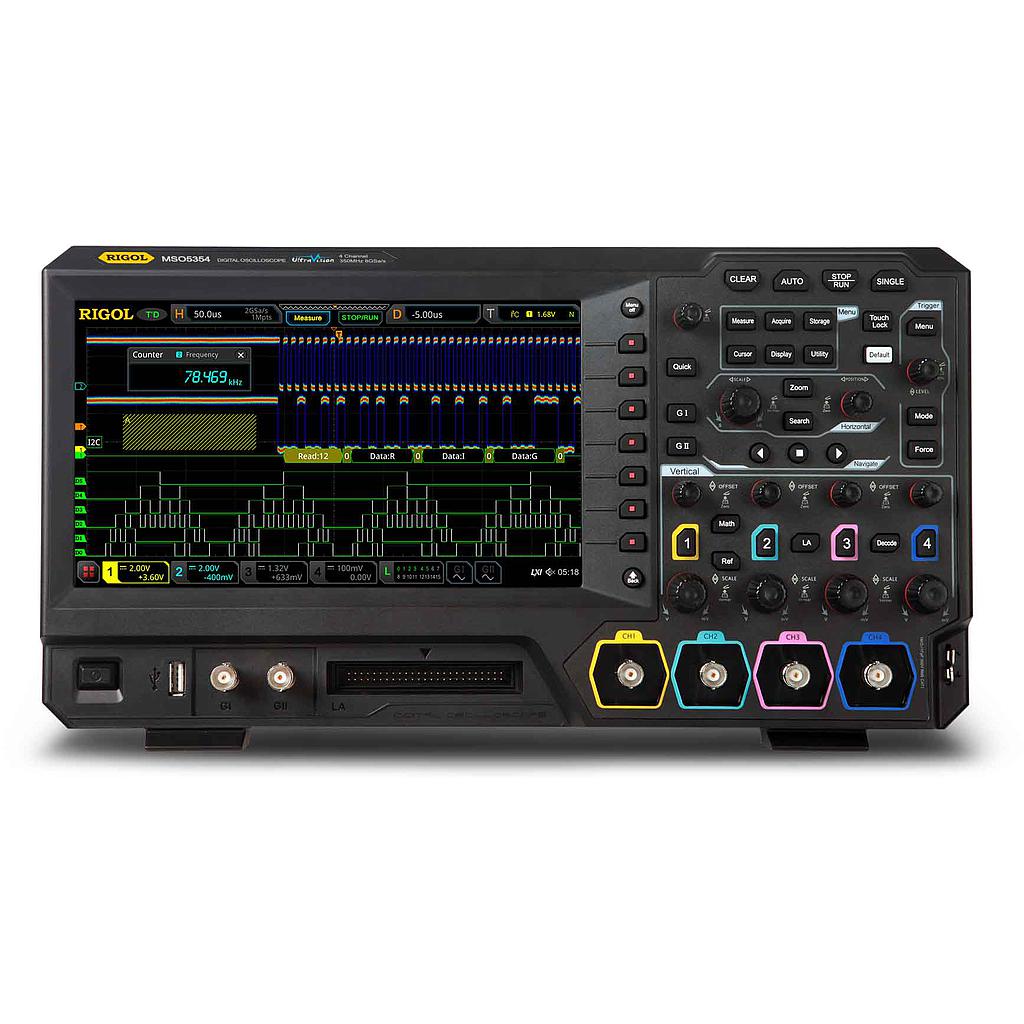

RIGOL MSO5074 Oscilloscope ດິຈິຕອນ (70 MHz, 2/4 + 16CH,8 GSa/s)
Manufacturer: Rigol
Model: MSO5074
Warranty: 12 months
Bandwidth
Analog Channel+ Digital Channel: 2/4+16
Max. Sample Rate: 8 GSa/s
Max Memory Depth: 200 Mpts(optional)
Waveform Capture Rate: >500,000 wfms/s
Max. Frames of Waveform Recording: 450,000
LCD: 9'' capacitive multi-touch screen
Hardware Mask Test: Standard
Built-in Arbitrary Waveform Generator: 2 CH, 25 MHz(optional)
Built-in Digital Voltmeter: Standard
Built-in Hardware Counter: 6-digit frequency counter + totalizer
Search and Navigation: Standard, supporting table display
Power Analysis: Built-in UPA (optional)
Serial Protocol Analysis: RS232/UART, I2C,
SPI, CAN, LIN, FlexRay, I2S, and MIL-STD-1553
Waveform Color Persistence: Standard
Histogram: Standard
FFT: Enhanced FFT, Standard
MATH: Displays 4 functions at the same time
Connectivity: standard: USB, LAN, and HDMI option: USB-GPIB
INCLUDED ACCESSORIES
Passive Probes - One per channel
Instrument Quick Guide
Calibration Certificate
Power Cord
USB Cable
