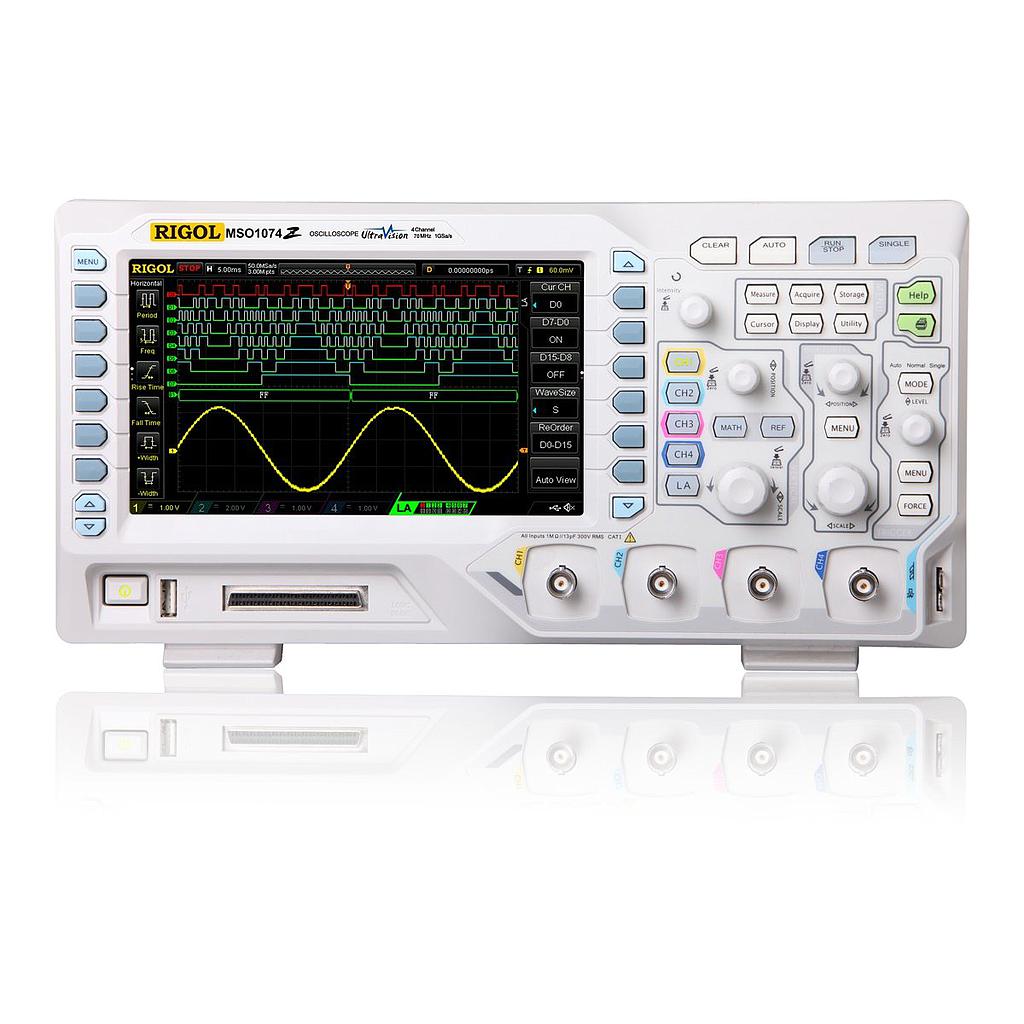

-Channels:
+4 analog
+ 16 digital
-Max. Sample Rate
Analog channel: 1 GSa/s (single-channel),
500 MSa/s (dual-channel), 250 MSa/s (three/four-channel)
Digital channel: 1 GSa/s (8-channel), 500 MSa/s (16-channel)
-Max. Memory Depth
Analog channel:
standard 12 Mpts (single-channel), 6 Mpts (dual-channel), 3 Mpts (3/4-channel);
optional 24 Mpts (single-channel), 12 Mpts (dual-channel), 6 Mpts (3/4-channel)
- Max. Waveform Capture Rate 30,000 wfms/s
-Hardware Real-time Waveform
Recording and Playback Functions Up to 60,000 frames (optional)
-Dimensions 313.1 mm × 160.8 mm × 122.4 mm
-Khối lượng: With package 3.8 kg ± 0.5 kg
-Standard Accessories
Power Cord conforming to the standard of the country
USB Cable CB-USBA-USBBFF-150
4 Passive Probes (150 MHz) RP2200
1 Logic Analyzer Probe (only for MSO1000Z) RPL1116
Quick Guide (Hard Copy)
-Optional Accessory
Rack Mount Kit RM-DS1000Z
Memory Depth Option (MEM-DS1000Z)
Analog channel: 24 Mpts (single channel)/12 Mpts (dual-channel)/6 Mpts (three/
four-channel)
Digital channel: 24 Mpts (8-channel)/12 Mpts (16-channel)
Waveform Record Option This option provides the waveform recording and playback function. (REC-DS1000Z)
Advanced Trigger Option RS232/UART trigger, I2C trigger, SPI trigger, Runt trigger, Window trigger, Nth
edge trigger, delay trigger, timeout trigger, Setup/Hold trigger (AT-DS1000Z)
Serial Protocol Analysis Option RS232/UART, I2C and SPI trigger and decoding functions (SA-DS1000Z)
