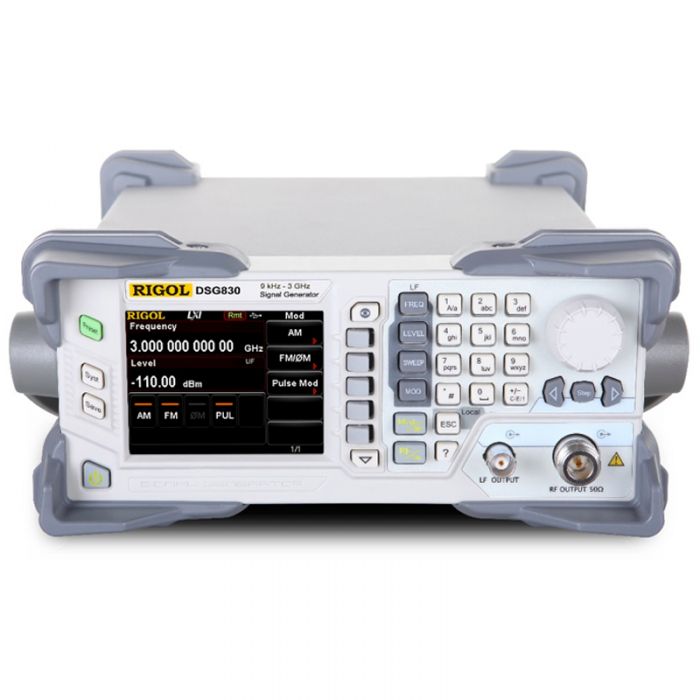

DSG815
Frequency range 9 kHz to 1.5 GHz
Frequency resolution 0.01 Hz
Setting time[1] < 10 ms (typ.)
Frequency Band
Band Frequency range N[2]
1 f < 227.5 MHz 0.25
2 227.5 MHz ≤ f < 455 MHz 0.125
3 455 MHz ≤ f < 910 MHz 0.25
4 910 MHz ≤ f < 1820 MHz 0.5
5 1820 MHz ≤ f ≤ 3000 MHz 1
Internal Reference Frequency
Reference frequency 10 MHz
Temperature stability In temperature range 0℃ to 50℃ , reference to 25℃ < 2 ppm
With option OCXO-B08 < 5 ppb
Aging rate < 1 ppm/year
With option OCXO-B08 < 30 ppb/year
Internal reference frequency output Frequency 10 MHz
Level +5 dBm to +10 dBm
External reference frequency input
Frequency 10 MHz
Level 0 dBm to +10 dBm
Maximum deviation ±5 ppm
Internal Modulation Generator (LF)
Waveform Sine, square
Frequency range
Sine DC to 200 kHz
Square DC to 20 kHz
Resolution 0.01 Hz
Frequency error The same with that of the RF reference source
Voltage range
AC 0 to 3 Vp
DC -3 V to 3 V
Voltage resolution 2 mV
Power Supply
Input voltage range, AC 100 V to 240 V (nom.)
AC frequency range 45 Hz to 440 Hz
Power consumption With all the options 50 W (typ.), max. 60 W
Dimensions
(W × H × D) 261.5 mm × 112 mm × 318.4 mm
(10.30 inch × 4.41 inch × 12.54 inch)
Weight
4.2 kg (9.3 Ib)
