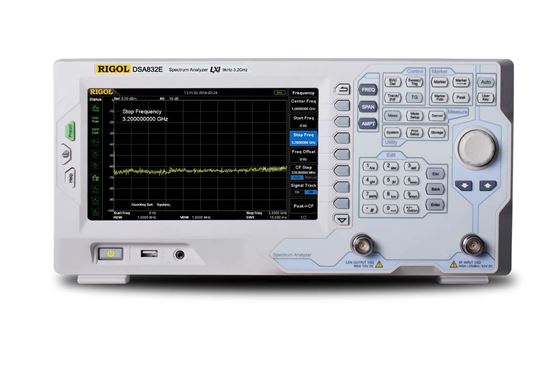

Rigol DSA832E-TG Spectrum Analyzer (3.2Ghz)
Frequency
Frequency Range 9 kHz to 3.2 GHz
Frequency Resolution 1 Hz
SSB Phase Noise 20° to 30°, fc=1GHz
Carrier Offset 10kHz <-90dBc/Hz
Bandwidths Resolution Bandwidth (-3dB)
10 Hz to 1 MHz, in 1-3-10 sequence
Displayed Average Noise Level(DANL)
0 dB RF Attenuation, RBW=VBW=10Hz, Sample Detector, Trace Average ≥ 50, Tracking generator OFF, 20° to 30° ,input terminated 50Ω, PA On
<-148dbm typ="" br="">
Resolution 800 x 480 pixels
Size 8 inch
Colors 64k
Printer Supported
Protocol PictBridge
Mass Memory
Mass memory
flash disk (internal),
USB storage device (not supplied)
TG Output
Frequency range 100 kHz to 3.2 GHz
Output level range -40 dBm to 0 dBm
Output level resolution 1 dB
Output flatness relative to 50 MHz :±3 dB (nom.)
Power Supply
Input voltage range, AC 100 V to 240 V (nom.)
AC supply frequency 45 Hz to 440 Hz
Dimensions (W × H × D)
361.6 mm × 178.8 mm × 128 mm
(14.2 in × 7.0 in × 5.0 in)
Weight Standard 4.55 kg (10.0 lb)
With tracking generator 5.15 kg (11.4 lb)
