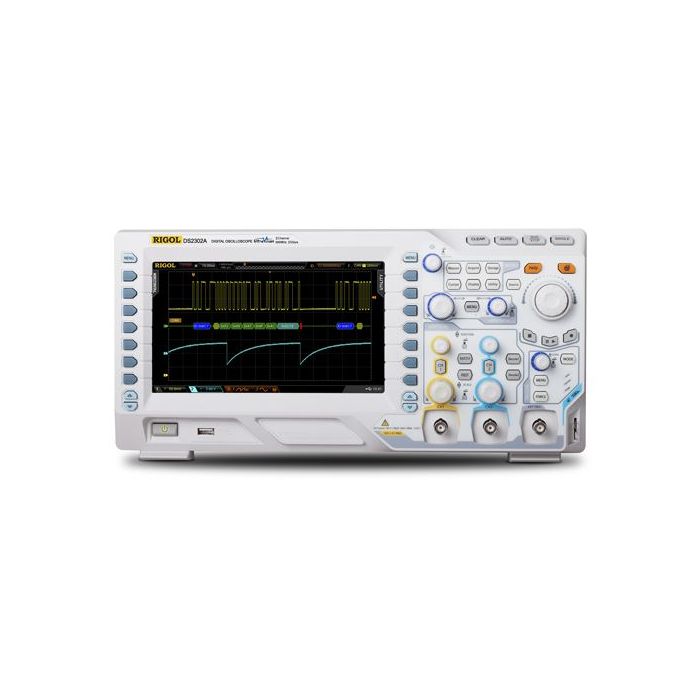

RIGOL DS2302A Oscilloscopes ດິຈິຕອນ (300Mhz, 2CH, 2 GSa/s)

ຜູ້ຜະລິດ: RIGOL
Model: DS2302A
ຕິດຕໍ່ພົວພັນ
- ຂໍໃບສະເໜີລາຄາ

ຂໍ້ມູນສະເພາະ
ຂໍ້ມູນຜູ້ຜະລິດ

Bandwidth: 300 Mhz
Channels: 2
Built-in 2 Ch Waveform generator
Wider vertical range(500uV/div ~ 10V/div), lower noise floor
Real Time Sample Rate: 2 GSa/s (single-channel), 1 GSa/s (dual-channel)
Memory Depth: up to 14Mpts(Std.), 56Mpts(Option.)
Innovative "UltraVision" Technology
Waveform capture rate up to 50,000 wfs/s
Up to 256 Levels intensity grading waveform display
Up to 65,000 frames Hardware based Real Time waveform Record,Replay and Analysis function(Std.)
Auto Measurement: Measurements of Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Average, Mean Square Root, Overshoot, Pre-shoot, Area, Period Area, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay AB , Delay
AB , Phase AB , Phase AB
A variety of trigger and serial bus decording functions( RS232,I2C,SPI,CAN) Option
Complete connectivities :USB Host,USB Device,LAN(LXI Core Device 2011),AUX
8 inch TFT (800x480) WVGA
Power Voltage: 100 to 240 V
Size: 361.6 mm× 179.6 mm×130.8 mm
Weigt: 3.9 kg
Include: Power Cord, USB Data Cable, 2 Passive Probes (350 MHz), Quick Guide, Resource CD (User’s Guide and Application Software)

ລາຍລະອຽດ

DS2000A Series Digital Oscilloscope

DS2000A Series is the new mainstream digital scope to meet the customers needs with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities.

Feature and Benifits

Bandwidth up to 300MHz,standard with 50Ω input
Wider vertical range(500uV/div ~ 10V/div), lower noise floor
Max. Sample Rate 2G Sa/s
Memory Depth up to 14Mpts(Std.), 56Mpts(Opt.)
Innovative "UltraVision" Technology

Waveform capture rate up to 50,000 wfs/s
Up to 256 Levels intensity grading waveform display
Up to 65,000 frames Hardware based Real Time waveform Record,Replay and Analysis function(Std.)
A variety of trigger and serial bus decording functions( RS232,I2C,SPI,CAN)
Built-in 2 Ch Waveform generator (DS2000A-S)
Complete connectivities :USB Host,USB Device,LAN(LXI Core Device 2011),AUX
Compact size, light weight, easy to use
8 inch TFT (800x480) WVGA

Advanced functions

Compact size, Light weight, Easy to Use

Wider Vertical range(500uV/div~10V/div），Lower noise floor, Better for small signal capturing

Full Bandwidth，Lower Overshoot，Perfect frequency response design

UltraVision: Deeper memory（Std.14Mpts，Opt. 56Mpts）

UltraVision: Up to 50,000 wfms/s Waveform capture rate

UltraVision: Realtime waveform record,replay, analysis function (std.)

UltraVision: Deeper Memory with Multi-Level intensity grading display(Up to 256 levels)

Serial bus Trigger&Decoding functions (RS232,I2C,SPI,CAN)

Optional Serial bus decording function with listing display

Versatile trigger functions(Runt, Nth Edge, Setup/Hold...）

Runt Trigger

Standard Advanced Math function (User Defined)

Standard Mask test function

Built-in 2CH Source(DS2000A-S)

Arb function of the Built-in 2CH Source (DS2000A-S)

Automatic Measurements with Statistics

Complete Connectivity（USB Host,USB Device,LAN,AUX）

Ordering Information

	Description	Order Number
Model	70MHz,2-channel	DS2072A
	70MHz,2-channel + 2-channel Signal Source	DS2072A-S
	100MHz,2-channel	DS2102A
	100MHz,2-channel + 2-channel Signal Source	DS2102A-S
	200MHz,2-channel	DS2202A
	200MHz,2-channel + 2-channel Signal Source	DS2202A-S
	300MHz,2-channel	DS2302A
	300MHz,2-channel + 2-channel Signal Source	DS2302A-S
Standard Accessories	Power Cord conforming to the standard of the country	-
	USB Data Cable	CB-USBA-USBBFF-150
	2 Passive Probes (350 MHz)	RP3300A
	Quick Guide	-
	Resource CD (User’s Guide and Application Software)	-
Optional Accessories	Rack Mount Kit	RM-DS2000A
Deep Memory Option	56Mpts(single channel)/28Mpts(dual channel)	MEM-DS2000A
Advanced trigger functions	Windows, Nth Edge,HDTV,Delay, Time Out,Duration, USB	AT-DS2000A
Decoding Options	RS232,I2C,SPI Decoding Kit	SD-DS2000A
	CAN Analysis kit(Trigger+Decoding)	CAN-DS2000A

For detailed performance parameters and technical specifications, refer to DS2000A Series Datasheet
