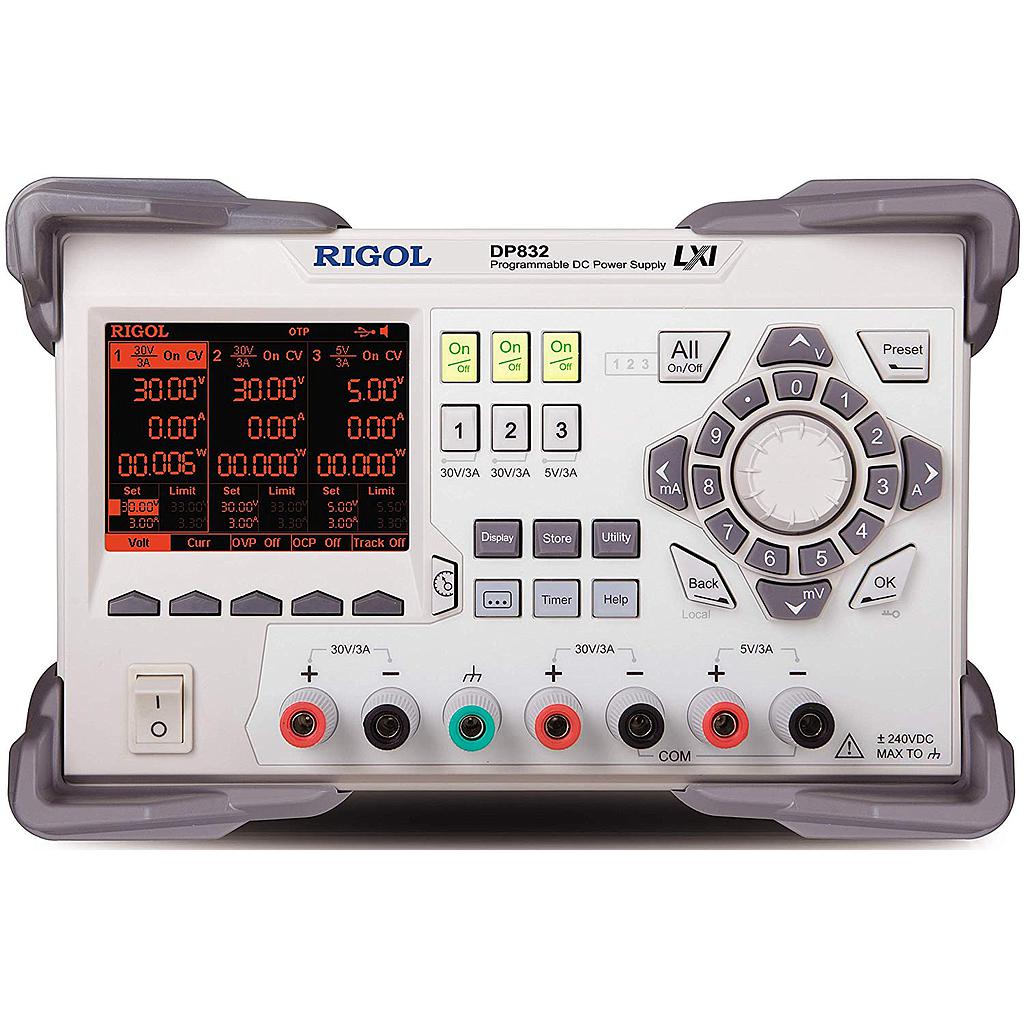

RIGOL DP832A DC Power Supply (30V, 3A, 3 Ch)

Channel (Range): CH1, CH2, CH3

Output power: 195W

Range:

CH 1: 0 to 30V/0 to 3A

CH 2: 0 to 30V/0 to 3A

CH 3: 0 to 5V/0 to 3A

Load Regulation Rate:

Voltage: <0.01%+2mV

Current: <0.01% + 250μA

Linear Regulation Rate:

Voltage: <0.01%+2mV

Current: <0.01% + 250μA

Ripples and Noise (20Hz to 20MHz)

Voltage <350 vrms="" 2mvpp="" br=""> Current <2mArms

Accuracy:

- Programming:

+ Voltage: 0.05%+20mV/ 0.05%+20mV/ 0.1%+5mV

+ Current: 0.2%+5mA/ 0.2%+5mA/ 0.2%+5mA

- Readback:

+ Voltage: 0.05%+10mV/ 0.05%+10mV/ 0.1%+5mV

+ Current: 0.15%+5mA/ 0.15%+5mA/ 0.15%+5mA

Resolution:

- Programming:

+ Voltage: 1/10mV

+ Current: 1mA

- Readback:

+ Voltage: 0.1/1mV

+ Current: 0.1/1mA

- Display: 1/10mV; 1/10mA

Interface: USB Device, USB Host, LAN, RS232, Digital IO

AC Power: 100Vac ± 10%, 115Vac ± 10%, 230Vac ± 10% (maximum 250Vac)

Power: 503VA

Weight: 10.3kg

Dimensions: 239mm(W) x 157mm(H) x 418mm(D)

Accessories: Cable power, Instruction manual.
