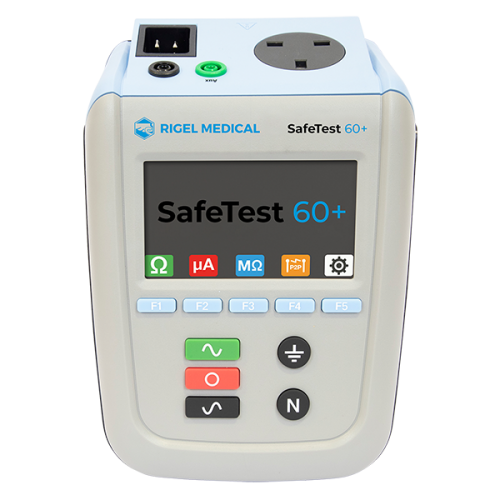

Rigel medical Safetest 60+ Entry-Level ເຄື່ອງວິເຄາະຄວາມປອດໄພໄຟຟ້າສໍາລັບອຸປະກອນທາງການແພດ (90-264V 48-64Hz.)
Earth Continuity
Pre-pulse: 2 wire ZAP technique.
Pulse Shape: Exponential Decay.
Decay Time: 200 – 550μs to 5% of peak (0.1 to 0.8Ω respectively).
Method: Wire.
Measurement Current: >± 200mADC into 2Ω.
Max Test Voltage: 4-24Vrms o/c.
Measuring Range (Low Range): 0.001 – 0.999Ω.
Resolution: 0.1Ω.
Measuring Range (Mid Range): 1.00 – 9.99Ω.
Measuring Range (High Range): 10.0 – 19.9Ω.
Accuracy: ± 1% of value, ± 5mΩ.
Circuit Protection: Test inhibited if ≥ 30VAC or DC at 4mm inputs.
Powered Leakage Measurements
Standards:
IEC 62353: Equipment Leakage (Direct).
IEC / AAMI 60601: Earth + Enclosure Leakage + Patient Leakage.
NFPA-99: Ground + Chassis Leakage + Patient Leakage.
IEC 61010: Touch Leakage, Touch Voltage.
Test Voltage: Mains Supply Voltage.
Measuring Range: 0.1 - 9999μA (0.1 - 8000μA typical for IEC 61010).
Measurement/Display Resolution: 0.1μA.
Accuracy: ± 2%, ± 5μA.
Mains Reversal: Soft Key.
Single Fault Conditions: Open Neutral and Open Earth Via Soft Key.
Frequency Response: IEC 60601 – 62353, NFPA-99, and IEC 61010 selectable.
EUT Load Current Measurement
Range: 0.0A – 20.0A.
Resolution: 0.1A.
Accuracy: ±5% ± 2 digits.
Insulation Resistance
Measurement: Point-to-point and EUT to Earth.
Voltage: 500VDC @1mA.
Maximum O/C Voltage: <600VDC.
Range: 100K – 100MΩ ± 5% ± 2 Digits.
Resolution: 0.01MΩ.
Short Circuit Current: <2mA.
Voltage Measurement
Application: L-N, L-E, N-E, and touch voltage (IEC 61010).
Range: 0.0V – 300VAC.
Resolution: 0.1Hz.
Accuracy: Unspecified.
Mains Frequency: 45.0 – 66.0Hz.
Power Source
Maximum Current Rating: 20A @ 120V / 16A @ 230V.
Duty Cycle (@21°C Ambient):
16A to 20A, 3 min. on / 10 min. off.
10A to 15A, 3 min. on / 5 min. off.
0A to 10A, continuous.
Mains Power: 90-264V 48-64Hz.
General Specifications
Weight: 1.1kg/2lbs (unit), 2.2kg/5lbs (complete with accessories).
Size (L x W x D): 225 x 150 x 100mm / 9 x 6 x 4”.
Altitude: 0 – 2000m.
Ingress Protection: IP 40.
