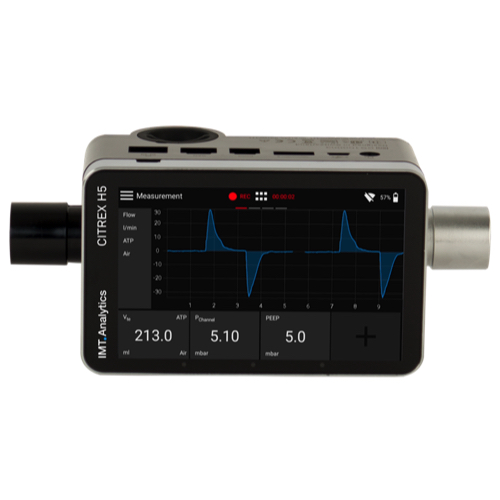

Rigel medical Citrex H5 ເຄື່ອງວິເຄາະການໄຫຼຂອງອາຍແກັສ (±300 sL/min)
Flow and Pressure Measurements
Flow: ±300 sL/min ±1.9% or ±0.1 L/min (for 10..40°C)
Measuring Bidirectional: Yes
Temperature Compensated: Automatic
Pressure Compensated: Automatic
Humidity Compensated: Manually
Units:
Flow: L/min, L/s, cfm, mL/min, mL/s
Pressure: bar, mbar, cmH2O, inH2O, Torr, inHg, hPa, kPa, mmHg, PSI
Ventilation Parameters
Breath Rate: 1–1000 bpm ±1 bpm or ±2.5%
Time: 0.05–60 s ±0.02 s
Ratio: 1:300–300:1 ±2.5%
Ti/Tcyc: 0–100% ±5%
Breath Volume: ±2% or ±0.20 mL (>6 sL/min)
Tidal Volume: ±10 L ±2% or ±0.20 mL (>6 sL/min)
Minute Volume: 0–300 sL/min ±2.5%
Peak Flow: ±300 sL/min ±1.9% or ±0.1 sL/min
Pressure: 0–150 mbar ±0.75% or ±0.1 mbar
Compliance: 0–1000 mL/mbar ±3% or ±1 mL/mbar
Pressure
High: -1–10 bar ±1% or ±7 mbar
Differential: ±200 mbar ±0.75% or ±0.1 mbar
Flow Channel: -50–150 mbar ±0.75% or ±0.1 mbar
Atmospheric Pressure: 500–1150 mbar ±1% or ±5 mbar
Other Measurements
Oxygen (Pressure Comp. ≤ 150 mbar): 0–100% ±1% O2
Gas Temperature: 0–50°C ±1.75% or ±0.5°C
Gas Types: Air, Air/O2, O2, N2O, N2O/O2, CO2, N2, He/O2
Gas Standards: ATP, ATPD, ATPS, AP21, STP, STPH, BTPS, BTPS-A, BTPD, BTPD-A, 0/1013, 20/981, 15/1013, 25/991, 20/1013, NTPD, NTPS
General Information
Realtime Curves: Yes
Display: 4.3'' Multi-Touch (color)
Interface: RS-232, USB, Ethernet, CAN, Analog Out, TTL, WLAN
Data Storage: Internal and microSD Card
Power: 100–240 VAC, 50–60 Hz
Dimension (W x D x H): 11.4 x 7 x 7.3 cm
Weight: 0.52 kg
Battery: 5 hours
Approvals: CE, BC (Energy Efficiency for Battery Charging Systems), CSA (North America), IEC 61010-1:2010, IEC 61326-2:2012
