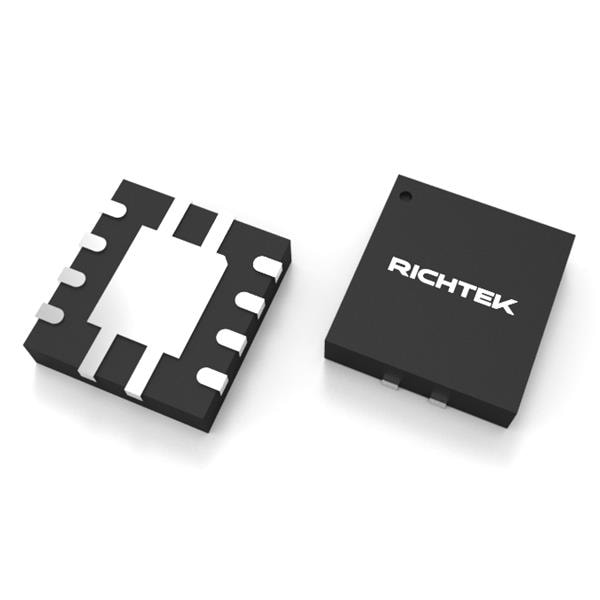

Richtek RT2519WGQV ຕົວຄວບຄຸມແຮງໂຕລະຫລັກ LDO 1A, ສະຫຼຸບເສຍສຽງຕ່ຳ, PSRR ສູງສຸດ, ຕົວຄວບຄຸມເສຍຕ່ຳຮູບແບບ Linear

Polarity: Positive

Output Type: Adjustable

Unit Weight: 21 mg

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 800 mV to 5.5 V

Dropout Voltage: 170 mV

Number of Outputs: 1 Output

Quiescent Current: 190 uA

Moisture Sensitive: Yes

Input Voltage - Max: 6 V

Input Voltage - Min: 2.2 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 63 dB
