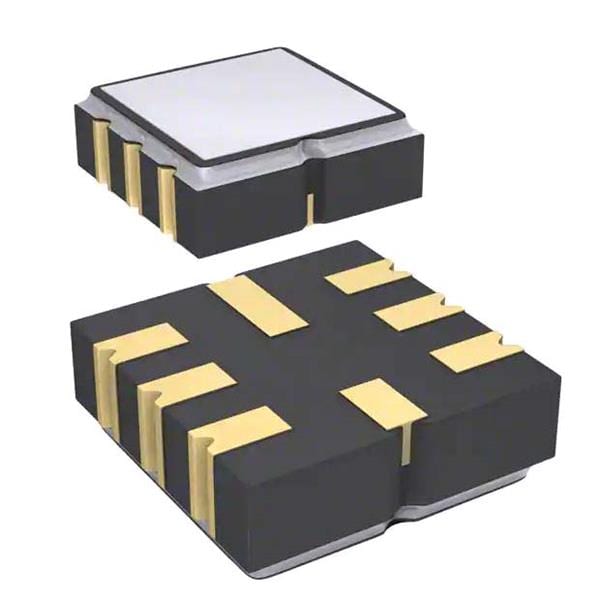

RFMi SF2038C-1 ຕົວກັບກັນ IF SAW 30V 76.5 MHz 175 // 180 Ohms SMD/SMT SM5050-8 12.7 MHz 12 dB - 40 C ຫາ + 105 C AEC-Q200

Mounting: Board Mount

Bandwidth: 12.7 MHz

Frequency: 76.5 MHz

Impedance: 175 Ohms, 180 Ohms

Unit Weight: 100.081 mg

Qualification: AEC-Q200

Insertion Loss: 12 dB

Voltage Rating: 30 V

Frequency Range: 70.5 MHz to 82.5 MHz

Termination Style: SMD/SMT

Operating Temperature Range: - 40 C to + 105 C

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
