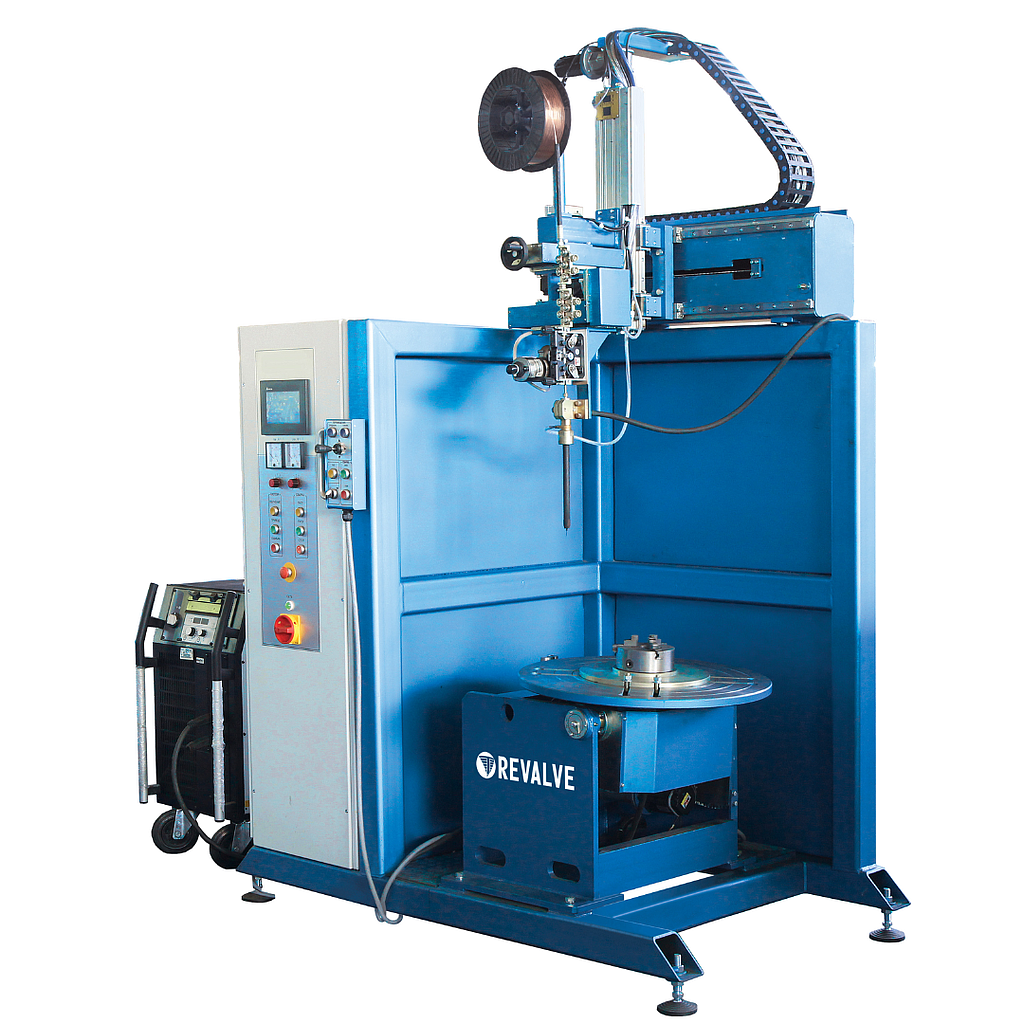

Revalve UNG-750-400-400-KNV-А ເຄື່ອງສໍາລັບ hardfacing / cladding ແລະ rebuilding ຂອງ cylindrical ແລະຫນ້າວາວແປ

Horizontal travel of welding head: 550(22) mm

Travel of a welding head along “zenith”: 100(4)mm

Vertical travel of a welding head: 400(16)mm

Rotator load capacity: 400kg

Rotator faceplate rotation speed: 0,05÷7 rpm

Tilt angle of a rotator faceplate: 0÷50 deg

Electrode-wire diameter: 1,6; 2,8 (0,069; 0,11)

Rated welding current, at 100% duty cycle: 420A

Welding current adjustment range: 5÷450A

Range of welding voltage: 15÷35 V

Arc protection method: gas

Maximum power consumption: 35 kW

Power supply: 400/50 V/Hz

Overall dimensions, (LxWxH):

- machine: 1800х1050х2665 (71x41x105) mm

- power source: 1100х455х950 (44x18x37) mm

Weight (machine/power source): 970/125kg
