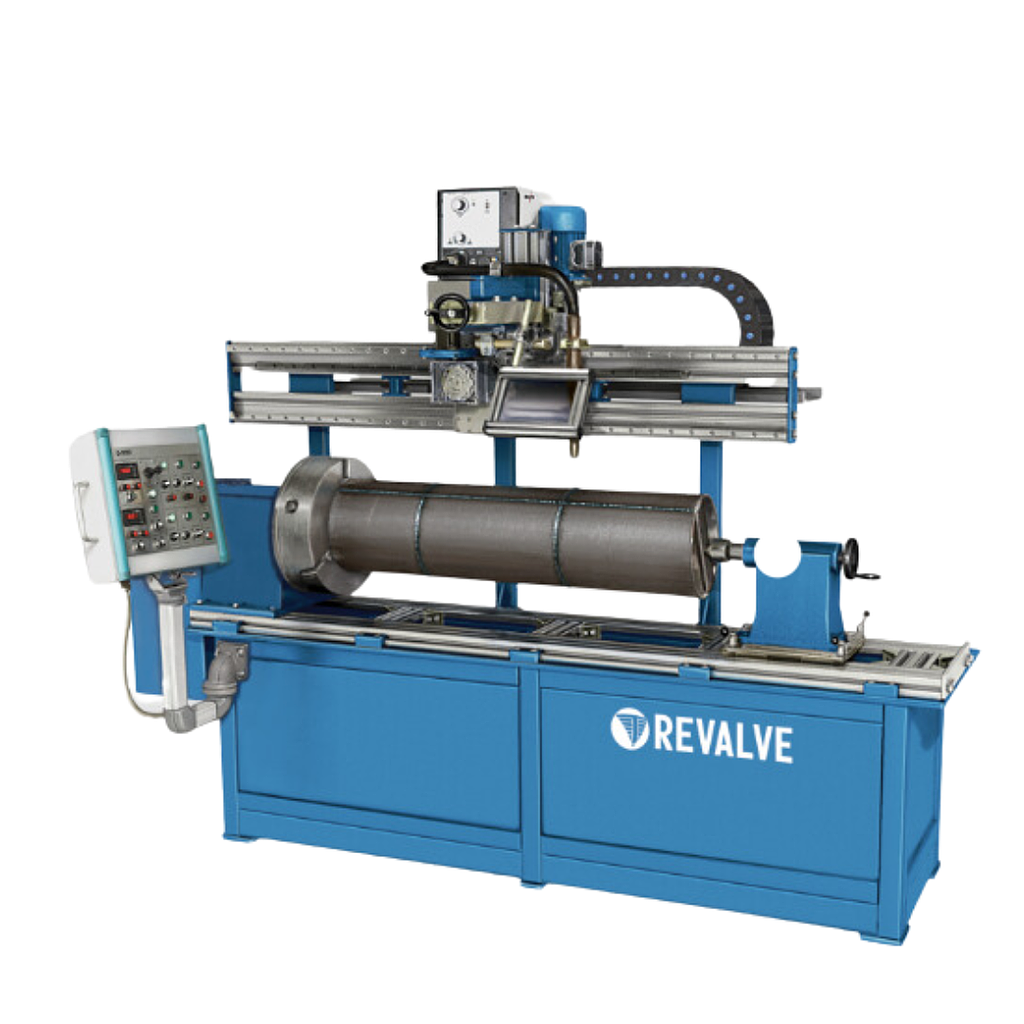

Parameter: UNG-400-1300-800-KN
Valve range, DN, mm (″): 25...400 (1...16)
Maximum weight of welded part: 800kg
Maximum length of the welded area (″): 1000 (39) mm
Maximum length of installed part (″): 1300 (51)mm
Vertical travel of welding head (″): 180 (7)* mm
Horizontal travel of welding head (″): 1300 (51) mm
Welded part rotation speed: 0,05...3 rpm (continuously adjustable)
Horizontal travel of welding head along welding seam(″): ±50 (±2)mm
Tailstock displacement (″): 1300 (51) mm
Amount of the quill movement (″): 40 (1,6) mm
Arc protection method: gas
Core wire diameter (″): 1,0; 1,2; 1,6 (0,039; 0.047; 0,069) mm
Rated welding current at 100% duty cycle (40 ° C): 450 A
Power supply: 400/50 V/Hz
Overall dimensions (machine/power supply unit) (LxWxH),(″) 2400х1725х2100/1100х455х1000mm (94x68x83/44x18x40)
Weight (machine/power supply unit): 1040/129kg
