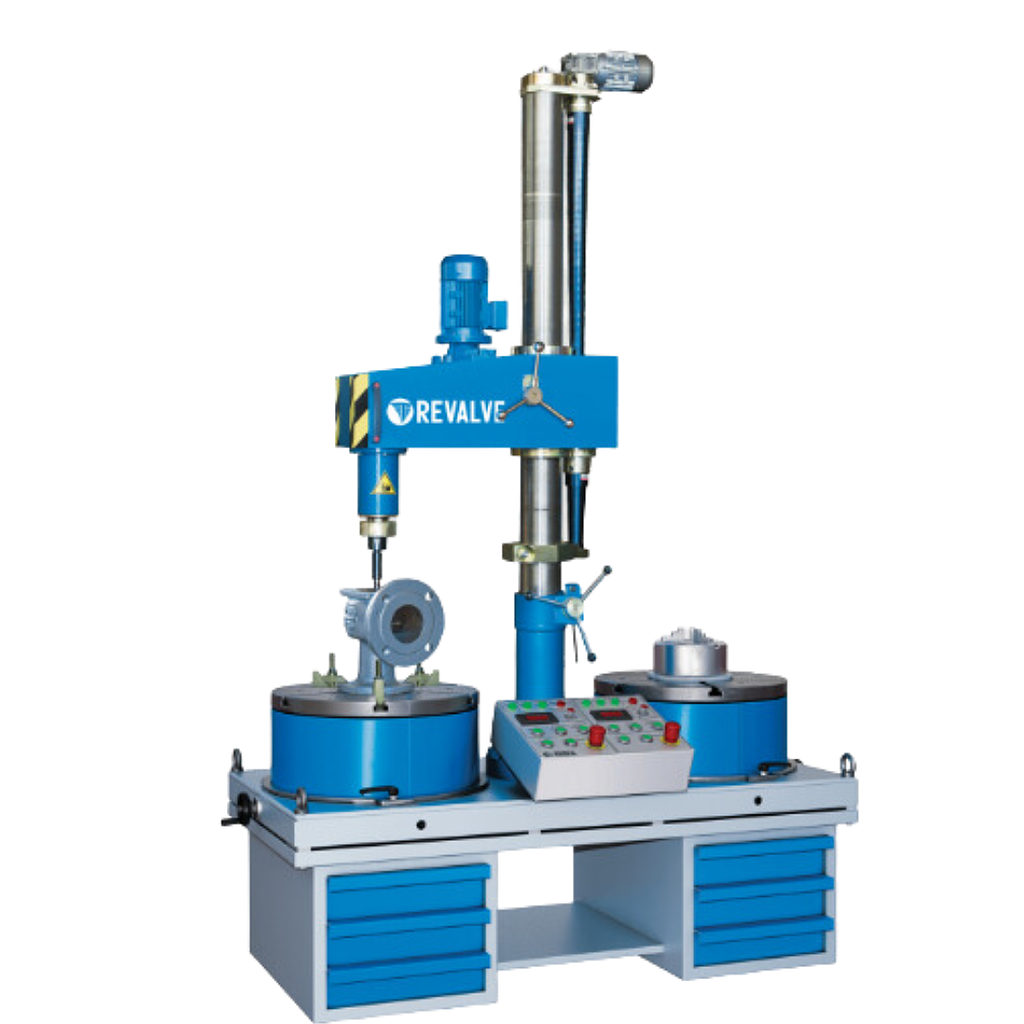

Revalve SPSH-300-VV ເຄື່ອງຈັກສໍາລັບການ grinding & lapping ຂອງບ່ອນນັ່ງແປວາວແລະຫນ້າຜະນຶກ

Specifications:

Valve range, DN, mm (″): 15…300(½...12)

Maximum diameter of the mounted valve flange (″): 500 (19)

Maximum face-to-face length of the mounted valve(″): 700 (27)

Maximum weight of the mounted part: 500

Dimensions of the table working surface(″): Ø 500 (19)

Spindle rotation speed adjustment: stepless

Spindle rotation speed: 10…240 rpm

Machined surface roughness: 0,2…0,4μm

Power consumption: 3 kW

Power supply: 400/50 V/Hz

Overall dimensions (LхWхH)(″): 1710х1180х2430 (67х46х96) mm

Weight (with tooling package): 1200kg
