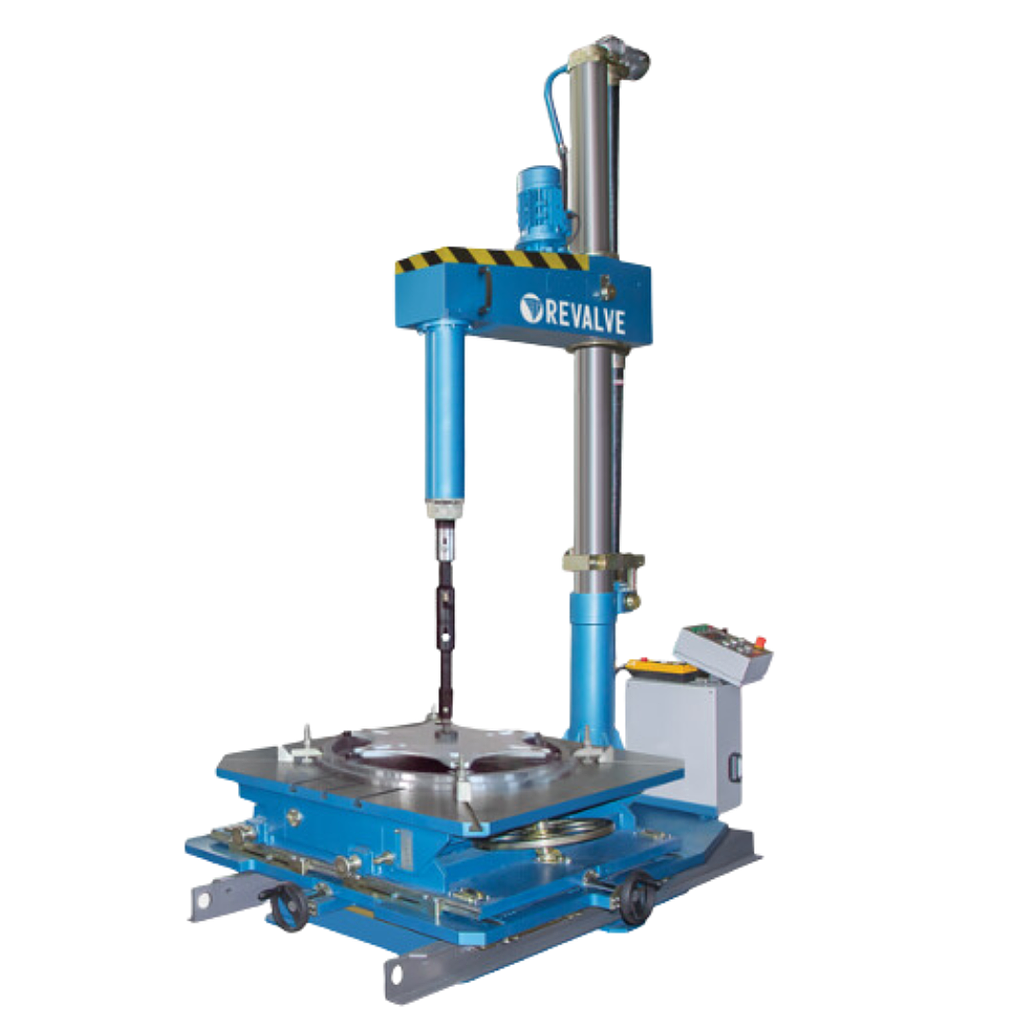

Revalve SPSH-1000-N ເຄື່ອງຈັກສໍາລັບການ grinding & lapping ຂອງບ່ອນນັ່ງແປວາວແລະຫນ້າຜະນຶກ

Specifications:

Valve range, DN, mm (″): 300…1000 (12...40)

Maximum diameter of the mounted valve flange (″): 1255 (50)mm

Maximum face-to-face length of the mounted valve(″): 1750 (69)mm

Maximum weight of the mounted part: 2500kg

Dimensions of the table working surface(″): 1200х1200 (48x48)mm

Tilt angle of the table: 0…12 degrees

Spindle rotation speed adjustment: stepless

Spindle rotation speed: 10…150rpm

Machined surface roughness: 0,2…0,4μm

Power consumption: 2,0 kW

Power supply: 400/50 V/Hz

Overall dimensions (LхWхH)(″): 2175х1550х3520 (86x61x138)mm

Weight (with tooling package): 3100kg
