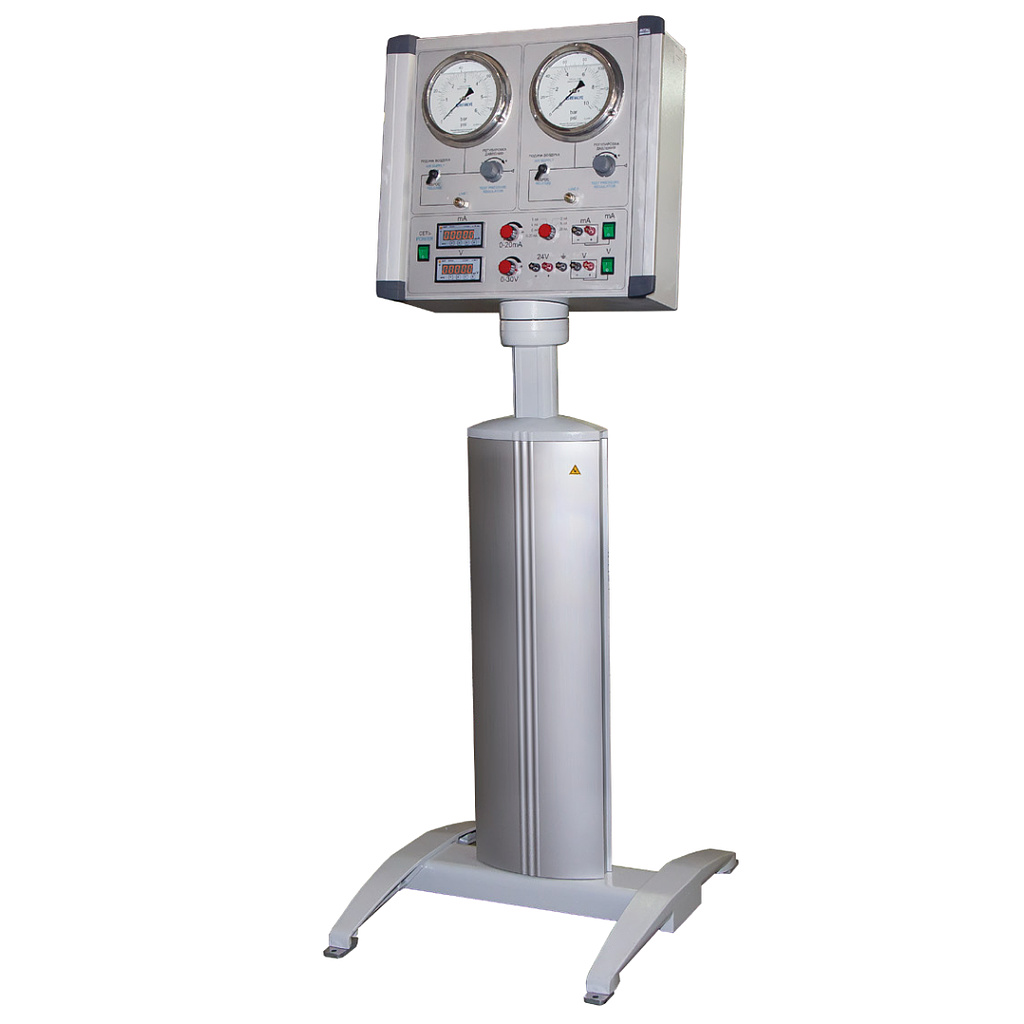

Revalve SI-PRA ຫນ່ວຍການທົດສອບສໍາລັບການທົດສອບຂອງ actuator valve ຄວບຄຸມ

Specifications:

Air pressure control range , bar (psi):

- channel I; from 0 to 4 (58)

- channel II. from 0 to 7 (102)

Pressure gauge accuracy rating (at least): 0,6

Adjustment range of current acc. to load (not exceeding 1kOhm) mA: from 0 to 20

Adjustment range of voltage acc. to load(at least 3 kOhm) V: from 0 to 30

Fixed values:

- of current acc. to load, not exceeding 1kOhm, mA: 4, 8, 12, 16, 20

- voltage acc. to load, at least 15 Ohm, V: 24

Power voltage of the tested products, V/W: 24/20

Milliammeter and voltmeter accuracy rating(at least): 0,6

Air pressure supplied to the bench, bar (psi)(at least): 7,5 (109)*

Supply power, V/Hz: 230/50

Overall dimensions, (LxWxH), mm (″): 600х700х1700(24x28x68)

Weight, kg: 75
