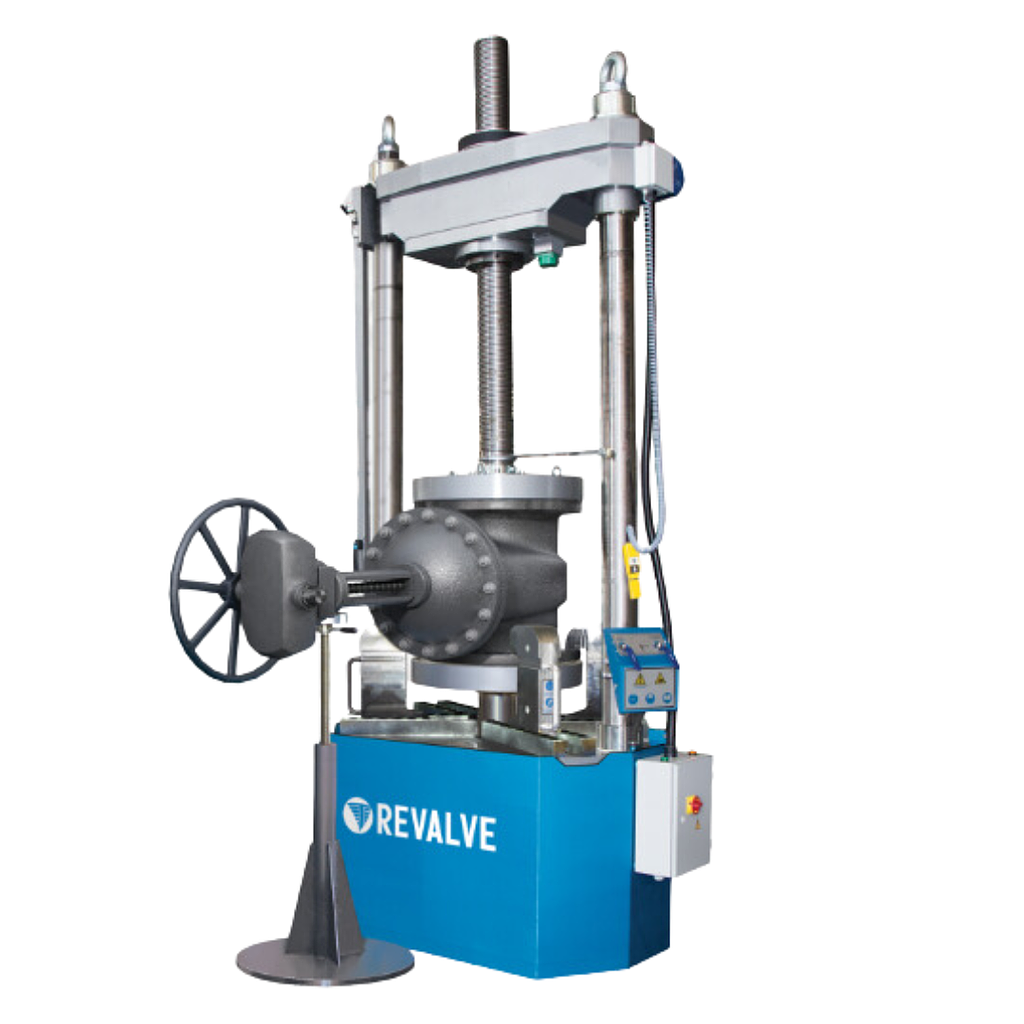

Revalve S-3-800/160 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 160t

Diameter of the clamped flange(″): 160/1020 (6/40) (min/max), mm

Maximum thickness of clamped flange(″): 90 (3)mm

Distance between test tables(″): 80/1450 (3/57) (min/max), mm

Distance between the columns(″): 1150 (45)mm

Power supply: 400/50 V/Hz

Power consumption: 1,1 kW

Overall dimensions (LхWхH)(″): 1975х1740х4370 (78x69x176)mm

Weight: 4170kg
