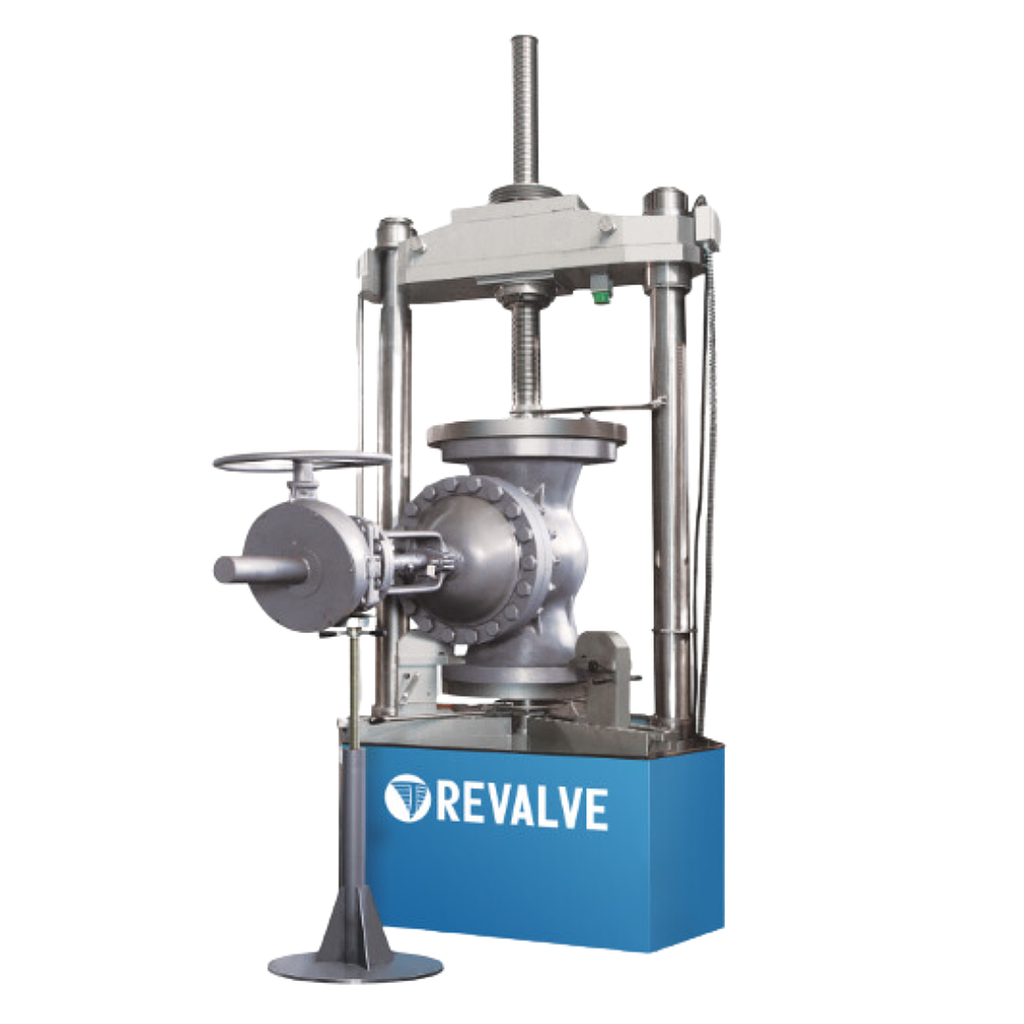

Revalve S-3-600/220 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 220 t

Diameter of the clamped flange(″): 160/910 (6/36) (min/max), mm

Maximum thickness of clamped flange(″): 115 (4)mm

Distance between test tables(″): 160/1445 (6/57) (min/max), mm

Distance between the columns(″): 160/1445 (6/57) mm

Power supply: 400/50 V/Hz

Power consumption: 1,1 kW

Overall dimensions (LхWхH)(″): 1745х1200х4505(69x47x177)mm

Weight: 3813kg
