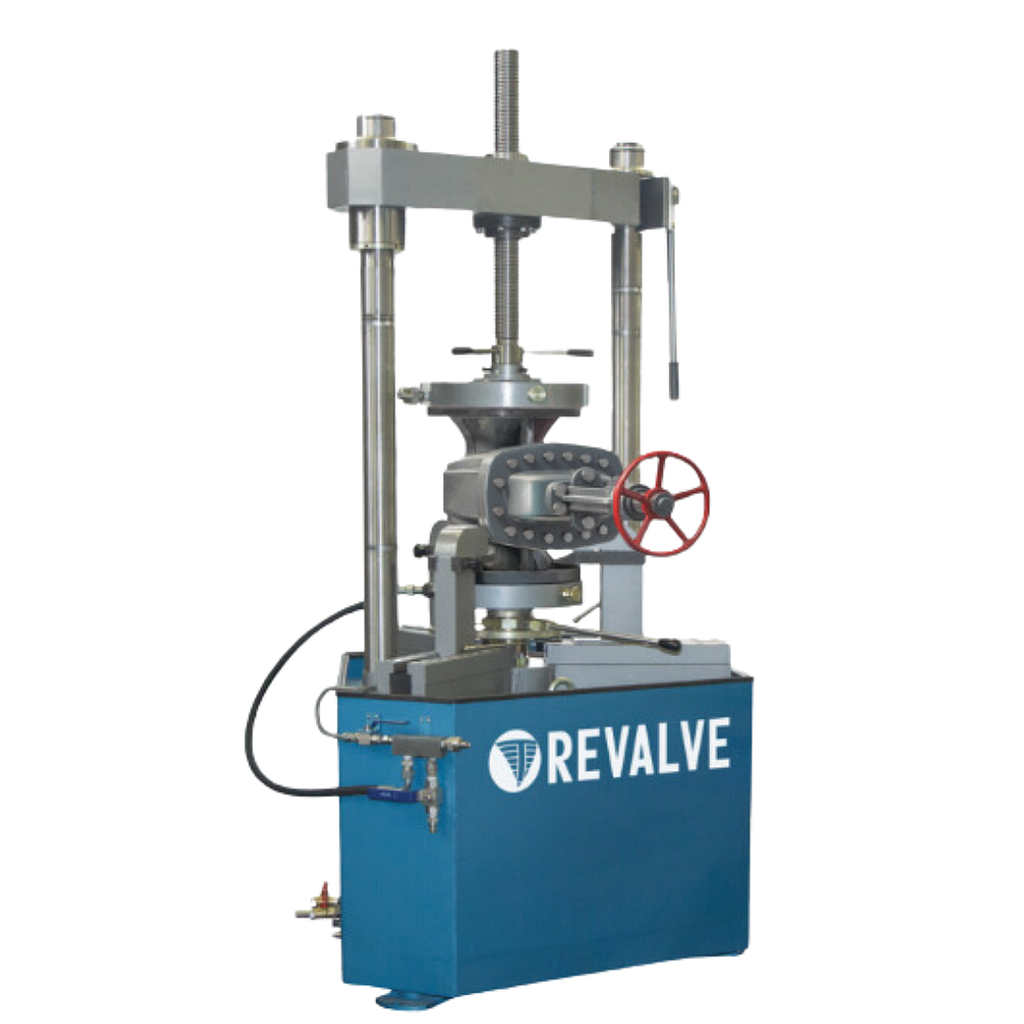

Revalve S-3-600/160 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 160t

Diameter of the clamped flange(″): 90/840 (3/33) (min/max), mm

Maximum thickness of clamped flange(″): 90 (3) mm

Distance between test tables(″): 90/1255 (4/50) (min/max), mm

Distance between the columns(″): 900 (35) mm

Power supply: 400/50 V/Hz

Power consumption: 1,1 kW

Overall dimensions (LхWхH)(″): 1730х1677х3970(68x66x156)mm

Weight: 3391kg
