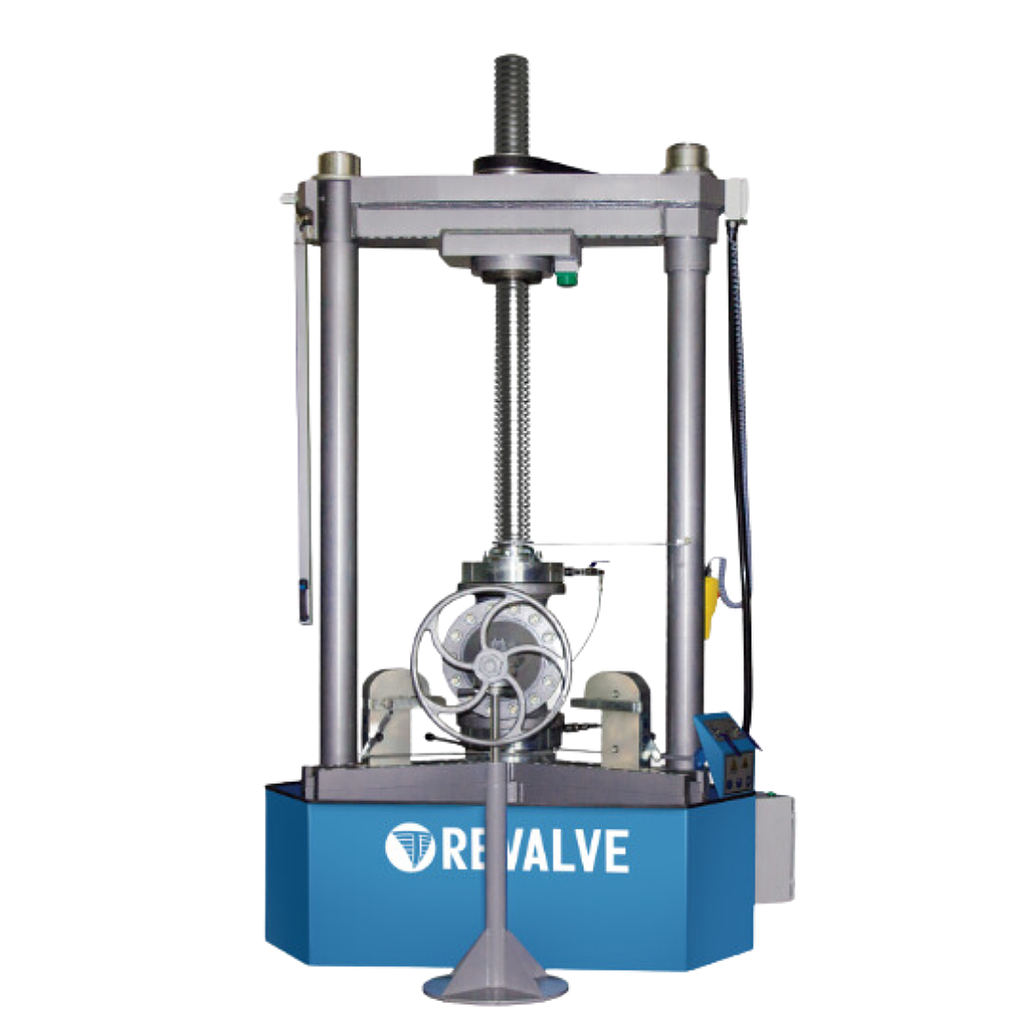

Revalve S-3-600/100 ເບນທົດສອບສຳລັບປິດ ແລະປ່ຽງຄວບຄຸມ

Specifications:

Maximum clamping force: 100t

Diameter of the clamped flange(″): 90/840 (3/33) (min/max), mm

Maximum thickness of clamped flange(″): 115 (4)mm

Distance between test tables(″): 72/1252 (3/49)(min/max),mm

Distance between the columns(″): 900 (35) mm

Power supply: 400/50 V/Hz

Power consumption: 1,1 kW

Overall dimensions (LхWхH), mm (″): 1725х1522х3880 (63x60x153)mm

Weight: 2680kg
